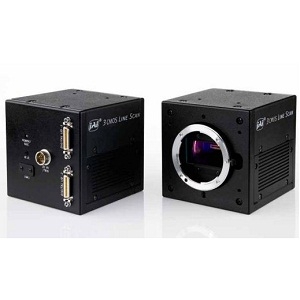

LT-200CL

Scientific & Industrial Camera by JAI
36 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to JAI.

The LT-200CL from JAI is a Scientific & Industrial Camera with Bit Depth 24 Bit, 30 Bit (Video output), Line Rate 30 kHz, SNR 57 dB. More details for LT-200CL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LT-200CL
  • Manufacturer
    JAI
  • Description
    3 CMOS RGB Line Scan Camera

Applications

  • Application
    Food inspection, Semiconductors and LCD displays, Electronics, 2D print inspection, 3D print inspection, Web applications, Sports imaging, Fruit and vegetable inspection
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Entertainment and Media

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Line Scan Cameras
  • Resolution
    2048(H) x 3(V), 1024(H) x 3(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Pixel Size(H x V)
    14.0 x 14.0 µm
  • Active Image Area
    3 x 2048 mm (H) 3 x 1024 mm (H)
  • Exposure Time :
    25.8µs to 13.209 msec. in 12.5 ns increments
  • Bit Depth
    24 Bit, 30 Bit (Video output)
  • Line Rate
    30 kHz
  • Scan Rate
    Line Rate: 32.9µs (Full resolution/binning/internal trigger) 32.9µs to 16.844ms, 12.5ns increments
  • Detector Sensitivity
    2800 Lux (7800K, gain = low, shutter = OFF, G = 0 dB, F2.8, 100% video)
  • SNR
    57 dB
  • Sensor Configurations
    RGB
  • Detection Wavelength Range
    Visible
  • Cooling Method
    Uncooled
  • Gain Range
    -4 to 14 dB
  • Operating Humidity
    20 to 80%
  • Pixel Binning
    2:1
  • Trigger Mode
    No-shutter, shutter-select and pulse width control
  • Vertical Clock Speed
    80.00 MHz (Pixel Clock)
  • Chrome
    RGB, Visible
  • Lens Mount
    F-Mount, M-Mount
  • Power Supply
    12 to 24 VDC
  • Optical Diagonal
    28.67 mm
  • RoHs
    Yes
  • Note
    Resolution: 2K (2048) pixels per sensor

Physical Properties

  • Dimension
    90 x 90 x 120 (W x H x D)
  • Weight
    830 g

Temperature

  • Operating Temperature
    -5 to 45 Degree C
  • Storage Temperature
    -25 to 60 Degree C
