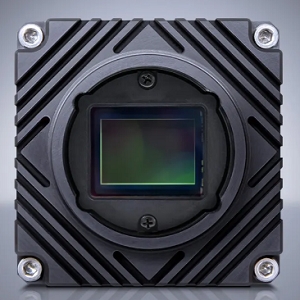

ATX470S

Scientific & Industrial Camera by LUCID Vision Labs
20 more products from this company
Request Quote

Note: Your Quotation Request will be directed to LUCID Vision Labs.

The ATX470S from LUCID Vision Labs is a Scientific & Industrial Camera with Mega Pixels 47 MP, Frame Rate 15.5 to 22.6 fps, Bit Depth 10 Bit, 12 Bit. More details for ATX470S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ATX470S
  • Manufacturer
    LUCID Vision Labs
  • Description
    47 MP Monochrome, Color, RGB, Bayer, Ultraviolet Digital, Analog Camera with CMOS image sensor

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), Power over Ethernet (PoE)

General Parameters

  • Camera Type
    Digital Cameras, Analog Cameras
  • Mega Pixels
    47 MP
  • Resolution
    8192(H) x 5556(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    15.5 to 22.6 fps
  • Pixel Size(H x V)
    2.315µm (H) x 2.315µm (V)
  • Exposure Time :
    125 µs to 10 s
  • Sensor Format
    4/3 Inches
  • Bit Depth
    10 Bit, 12 Bit
  • Sensor Configurations
    Monochrome, Color, RGB, Bayer, BGR
  • Detection Wavelength Range
    Ultraviolet
  • Gain Range
    12 to 27 dB
  • Operating Humidity
    20 to 80%
  • Pixels
    47 MP
  • Warranty
    3 Year
  • Compliances
    CE, FCC, RoHS, REACH, WEEE
  • ADC Resolution
    10 Bit, 12 Bit
  • Chrome
    Monochrome, Color, RGB, Bayer, Ultraviolet
  • Lens Mount
    TFL-Mount
  • Power Supply
    12 to 24 V
  • Power Consumption
    11.5 to 12 W
  • Optical Diagonal
    23.1 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX492 CMOS

Physical Properties

  • Dimension
    55 x 55 x 95.5 mm
  • Weight
    304 g

Temperature

  • Operating Temperature
    -20 to 55 Degree C
  • Storage Temperature
    -30 to 60 Degree C
