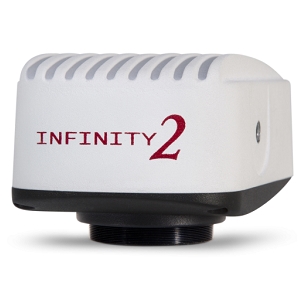

INFINITY2-1R

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The INFINITY2-1R from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 1.4 MP, Frame Rate 30 to 52 fps, Quantum Efficiency(QE) 32%, 44%, Bit Depth 8 Bit, 14 Bit. More details for INFINITY2-1R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    INFINITY2-1R
  • Manufacturer
    Lumenera Corporation
  • Description
    1.4 Megapixel USB 2.0, CCD

Applications

  • Application
    Brightfield, Darkfield, Live Cell Imaging, Histology, Pathology, Cytology, Defect Analysis, Semiconductor Inspection, Metrology, Gel Documentation, Low Light Fluorescence, Quantitative Analysis
  • Application Industry
    Scientific and Research, Medical and Healthcare

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Microscope Cameras
  • Mega Pixels
    1.4 MP
  • Resolution
    1392 x 1040 Pi x el
  • Sensor Type
    CCD
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    30 to 52 fps
  • Pixel Size(H x V)
    4.65 x 4.65 µm
  • Quantum Efficiency(QE)
    32%, 44%
  • Active Image Area
    7.6 x 6.2 mm
  • Full Well Capacity :
    14,500 e
  • Exposure Time :
    48 µs to 500 ms (video), 5.4 µs to 8 min (snapshot)
  • Sensor Format
    1/2 Inches
  • Dynamic Range
    64.6 dB
  • Bit Depth
    8 Bit, 14 Bit
  • Scanning Method
    Progressive Scanning
  • Dark Current
    < 1 e-/s at 22 ºC
  • Color / Bit Depth
    Bit Depth: 8 and 14 bit
  • Detector Sensitivity
    Peak Sensitivity: 2.5 DN/(nJ/cm2) [at 8-bit, 1 x gains]
  • Read Noise
    8.5 e
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Cooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    0.5 to 15 x
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2 x 2, 4 x 4
  • Pixels
    1.4 MP
  • Warranty
    Four year
  • Compliances
    FCC Class B, CE Certified
  • Compatible System
    Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit
  • Chrome
    Color, Monochrome
  • Lens Mount
    Adjustable C-mount standard
  • Voltage(DC)
    5 VDC
  • Power Supply
    USB bus power, or external 5 V DC, 500mA
  • Power Consumption
    2.5 W
  • Optical Diagonal
    8 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    ICX205

Physical Properties

  • Dimension
    97.8 x 69.8 x 50.8 mm
  • Weight
    340 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
