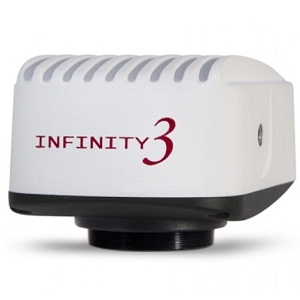

INFINITY3-1UR

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The INFINITY3-1UR from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 1.4 MP, Frame Rate 30 to 54 fps, Quantum Efficiency(QE) 44%, 62%, Bit Depth 8 Bit, 14 Bit. More details for INFINITY3-1UR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    INFINITY3-1UR
  • Manufacturer
    Lumenera Corporation
  • Description
    1.4 Megapixel Research-Grade Scientific USB 2.0 Camera, CCD

Applications

  • Application
    Fluorescent Microscopy, Green Fluorescent Protein, Fluorescent In Situ Hybridization, DNA Analysis, Live Cell Imaging, Brightfield, Darkfield, DIC/Phase Techniques, Near IR Imaging, Histology, Pathology and Cytology, Forensic Analysis, Gel Documentation, Semiconductor Inspection, Material Sciences and Nanotechnology, Quantitative Analysis
  • Application Industry
    Scientific and Research, Medical and Healthcare

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Microscope Cameras, Digital Cameras
  • Mega Pixels
    1.4 MP
  • Resolution
    1392 x 1040 Pi x el
  • Sensor Type
    CCD
  • Frame Rate
    30 to 54 fps
  • Pixel Size(H x V)
    6.45 x 6.45 um
  • Quantum Efficiency(QE)
    44%, 62%
  • Full Well Capacity :
    18,500 e
  • Exposure Time :
    3 µs to 211 ms (video), 2 µs to 10 min (snapshot)
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    70 dB
  • Bit Depth
    8 Bit, 14 Bit
  • Scanning Method
    Progressive Scanning
  • Dark Current
    1 e-/s at 22 ºC
  • Color / Bit Depth
    Bit Depth: 8 and 14 bit
  • Detector Sensitivity
    Peak Sensitivity: Mono: 6.6 DN/(nJ/cm²), Color: 5.3 DN/(nJ/cm²) (Global and channel gains at unity)
  • Read Noise
    6 e
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    0.5 to 35 x
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2 x 2, 4 x 4
  • Pixels
    1.4 MP
  • Warranty
    Four year
  • Compliances
    FCC Class B, CE Certified
  • Compatible System
    Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit
  • Chrome
    Color, Monochrome
  • Lens Mount
    Adjustable C-Mount standard
  • Power Consumption
    2.5 W (5 V DC, 2.5 A, 12.5 W power supply optional)
  • Optical Diagonal
    11 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    ICX285

Physical Properties

  • Dimension
    97.8 x 69.8 x 50.8 mm
  • Weight
    340 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
