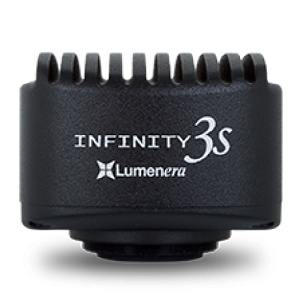

INFINITY3S-1UR

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The INFINITY3S-1UR from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 1.4 MP, Frame Rate 45 to 60 fps, Quantum Efficiency(QE) 57%, 71%, Bit Depth 8 Bit, 14 Bit. More details for INFINITY3S-1UR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    INFINITY3S-1UR
  • Manufacturer
    Lumenera Corporation
  • Description
    Ultra-Sensitive, 1.4 MP USB 3.0 Camera CCD

Applications

  • Application
    Low Light Fluorescence, Immunofluorescence, Brightfield, Darkfield, DIC/Phase techniques, DNA Analysis, Live Cell Imaging, Whole Slide Imaging, Near-Infrared DIC, Histology, Pathology and Cytology, Calcium/Ion Imaging, Forensic Analysis, Semiconductor Inspection, Metallurgical Microscopy, Gel Documentation
  • Application Industry
    Scientific and Research, Industrial Inspection and Automation, Medical and Healthcare

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Microscope Cameras, High-Speed Cameras
  • Mega Pixels
    1.4 MP
  • Resolution
    1392 x 1040 Pi x el
  • Sensor Type
    CCD
  • Shutter Type
    Global Shutter
  • Frame Rate
    45 to 60 fps
  • Pixel Size(H x V)
    6.45 x 6.45 um
  • Quantum Efficiency(QE)
    57%, 71%
  • Full Well Capacity :
    ~17,800 e
  • Exposure Time :
    3 µs to 71 min (snapshot) 23 µs to 1.3 s (video)
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    70 dB
  • Bit Depth
    8 Bit, 14 Bit
  • Dark Current
    1 e-/s at 22 ºC
  • Color / Bit Depth
    Bit Depth: 8 and 14 bit
  • Detector Sensitivity
    Peak Sensitivity: Mono: 18 DN/(nJ/cm²),Color: 9.5 DN/(nJ/cm²) (Global and channel gains at unity)
  • Read Noise
    5.8 e- (in dual-tap mode, slowest clock)
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    0.6 to 44x
  • I/O Signals
    Locking Hirose MXR-8R-8SA(71)
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2 x 2, 4 x 4, 8 x 8 (mono only)
  • Pixels
    1.4 MP
  • Trigger Mode
    Hardware and software triggerable
  • Warranty
    Four year
  • Compliances
    FCC Class B, CE Certified
  • Compatible System
    Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit
  • Chrome
    Color, Monochrome
  • Lens Mount
    Adjustable C-mount standard
  • Voltage(DC)
    5 VDC
  • Power Supply
    External 5 V DC, 1.2 A, power supply (included)
  • Power Consumption
    5 W max in full frame rate mode
  • Optical Diagonal
    11 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    ICX825

Physical Properties

  • Dimension
    97.8 x 69.8 x 50.8 mm
  • Weight
    375 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
