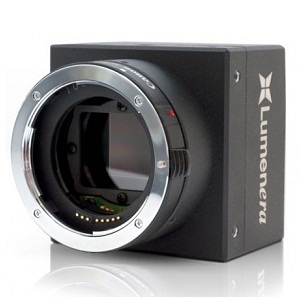

Lg11059

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The Lg11059 from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 11 MP, Frame Rate 5 to 14 fps, Quantum Efficiency(QE) >50%, Bit Depth 8 Bit, 14 Bit. More details for Lg11059 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Lg11059
  • Manufacturer
    Lumenera Corporation
  • Description
    High Resolution 11 Megapixel GigE Camera

Applications

  • Application
    Industrial And Scientific Applications
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Progressive-Scan Cameras, Digital Cameras
  • Mega Pixels
    11 MP
  • Resolution
    4008 x 2672 Pi x el
  • Sensor Type
    CCD
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    5 to 14 fps
  • Pixel Size(H x V)
    9 x 9 µm
  • Quantum Efficiency(QE)
    >50%
  • Active Image Area
    37.25 x 25.70 mm
  • Full Well Capacity :
    60,000 e
  • Exposure Time :
    85 µs to 198 ms (video), 1 µs to 67.11 s (snapshot)
  • Sensor Format
    35 mm
  • Dynamic Range
    66 dB
  • Bit Depth
    8 Bit, 14 Bit
  • Scanning Method
    Progressive Scanning
  • Dark Current
    50 mV/s at 20 ºC
  • Color / Bit Depth
    Bit Depth: 8 and 14 bit
  • Detector Sensitivity
    Peak Sensitivity: Excellent
  • Read Noise
    30 e
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    1 to 30.8 x
  • I/O Signals
    Locking Hirose connector
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2 x 2
  • Pixels
    11 MP
  • Trigger Mode
    Hardware and software triggerable
  • Warranty
    Four year
  • Compliances
    FCC Class B, CE Certified
  • Compatible System
    Windows XP, Vista, 8, 7, 32 and 64-bit
  • Chrome
    Color, Monochrome
  • Lens Mount
    Canon EF mount
  • Voltage(DC)
    12 VDC
  • Power Supply
    12 V DC
  • Power Consumption
    7.2 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Kodak
  • Sensor Model Number
    KAI-11002

Physical Properties

  • Dimension
    76.2 x 76.2 x 82.6 mm
  • Weight
    850 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
