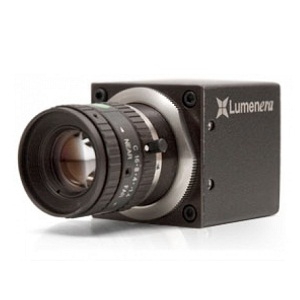

Lm135

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The Lm135 from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 1.4 MP, Frame Rate 15 to 30 fps, Bit Depth 8 Bit, 12 Bit. More details for Lm135 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Lm135
  • Manufacturer
    Lumenera Corporation
  • Description
    1.4 Megapixel Mini Industrial USB 2.0 Camera

Applications

  • Application
    Industrial and Scientific Applications
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Digital Cameras
  • Mega Pixels
    1.4 MP
  • Resolution
    1392 x 1040 Pi x el
  • Sensor Type
    CCD
  • Shutter Type
    Global Shutter, Electronic Shutter, Mechanical Shutter
  • Frame Rate
    15 to 30 fps
  • Pixel Size(H x V)
    4.65 x 4.65 µm
  • Active Image Area
    6.5 x 4.8 mm array
  • Sensor Format
    1/2 Inches
  • Dynamic Range
    60 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Scanning Method
    Progressive Scanning
  • Detector Sensitivity
    Peak Sensitivity: High
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2 to 4x
  • Pixels
    1.4 MP
  • Chrome
    Color, Monochrome
  • Lens Mount
    Adjustable C-Mount (CS-Mount option)
  • Power Consumption
    2.5 W
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    ICX205

Physical Properties

  • Dimension
    44 x 44 x 56 mm(W x H x D)
  • Weight
    130 g

Temperature

  • Operating Temperature
    0 to 50 Degree C

Technical Documents
Click to view more product details on manufacturer's website
