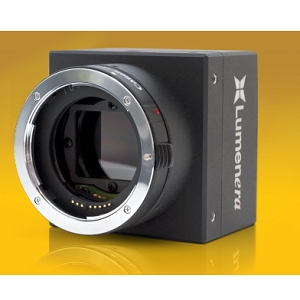

Lt16059H

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The Lt16059H from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 16 MP, Frame Rate 12 fps, Quantum Efficiency(QE) 46% (Mono), 37% (Color), Bit Depth 8 Bit, 14 Bit. More details for Lt16059H can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Lt16059H
  • Manufacturer
    Lumenera Corporation
  • Description
    High Performance 16 Megapixel 35 CCD USB 3.0 Camera

Applications

  • Application
    Traffic, Automated License Plate Recognition (LPR), UAVs, Industrial Inspection
  • Application Industry
    Traffic Management and Intelligent Transportation Systems (ITS), Industrial Inspection and Automation, Consumer Electronics

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Progressive-Scan Cameras, Digital Cameras
  • Mega Pixels
    16 MP
  • Resolution
    4864 x 3232 Pi x el
  • Sensor Type
    CCD
  • Shutter Type
    Global Shutter
  • Frame Rate
    12 fps
  • Pixel Size(H x V)
    7.4 x 7.4 µm
  • Quantum Efficiency(QE)
    46% (Mono), 37% (Color)
  • Active Image Area
    36.0 x 23.9 mm
  • Full Well Capacity :
    ~33,700 e
  • Exposure Time :
    Video mode: ~50 µs to 750 ms (4-tap) / 850 ms (2-tap) / 1050 ms (1-tap) (video) Snapshot mode: ~50 µs to 71 minutes
  • Sensor Format
    35 mm
  • Dynamic Range
    66.7dB
  • Bit Depth
    8 Bit, 14 Bit
  • Scanning Method
    Progressive Scanning
  • Dark Current
    5.8 e-/s/pixel (at 50 ºC camera temp)
  • Color / Bit Depth
    Bit Depth: 8 and 14 bit
  • Detector Sensitivity
    Peak Sensitivity: 4.7 DN/(nJ/cm2 ) (mono), 3.7 DN/(nJ/cm2 ) (color)
  • Read Noise
    15.5 e- (Quad Tap, Slowest Clock, 20 ºC ambient)
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    0.6 to 46x
  • I/O Signals
    Locking Hirose HR10A-10R-12PB(71)
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2x2, 4x4, 8x8
  • Pixels
    16 MP
  • Trigger Mode
    Hardware and software triggerable
  • Warranty
    Four year
  • Compliances
    FCC Class B, CE Certified
  • Compatible System
    Windows 10, 8, 7, Linux (32 and 64-bit)
  • Chrome
    Color, Monochrome
  • Lens Mount
    Canon EF mount (focus/iris support) for most EF lenses. Supports other mounts with 3rd party adapter rings (no focus/iris support)
  • Voltage(DC)
    12 VDC
  • Power Consumption
    7.2 W (single tap, slowest clock), 13.3 W (quad tap, fastest clock)
  • Optical Diagonal
    43.2 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    ON Semiconductor
  • Sensor Model Number
    KAI-16070

Physical Properties

  • Dimension
    76.2 x 76.2 x 82.6 mm
  • Weight
    600 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
