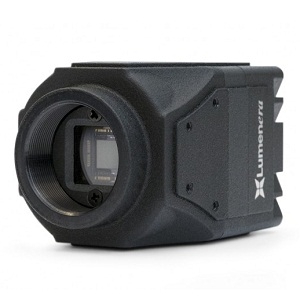

Lt225

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The Lt225 from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 2.2 MP, Frame Rate 170 fps, Quantum Efficiency(QE) 43%, 59%, Bit Depth 8 Bit, 12 Bit. More details for Lt225 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Lt225
  • Manufacturer
    Lumenera Corporation
  • Description
    2.2 Megapixel High-Speed USB 3.0 CMOS Camera

Applications

  • Application
    Traffic Monitoring, Automatic License/Number Plate Recognition (ALPR/ANPR), High-speed Inspection, Light UAVs and Motion Control
  • Application Industry
    Traffic Management and Intelligent Transportation Systems (ITS), Security and Surveillance

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    High-Speed Cameras
  • Mega Pixels
    2.2 MP
  • Resolution
    2048 x 1088 Pi x el
  • Sensor Type
    CMOS
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    170 fps
  • Pixel Size(H x V)
    5.5 x 5.5 µm
  • Quantum Efficiency(QE)
    43%, 59%
  • Active Image Area
    11.264 x 5.984 mm
  • Full Well Capacity :
    8,600 e
  • Exposure Time :
    26 µs to 4000 ms
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    56.4 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Dark Current
    125 e-/s (@25 ºC die temp)
  • Color / Bit Depth
    Bit Depth: 8 and 12 bit
  • Detector Sensitivity
    Peak Sensitivity: 13.7 DN/(nJ/cm2 ) [mono], 10.1 DN/(nJ/cm2 ) [color] (@ 8-bit, 1x gain)
  • Read Noise
    13 e-
  • Sensor Configurations
    Monochrome, Color
  • Detection Wavelength Range
    Near IR
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    1.0 to 33.2 x (mono), 1.0 to 8.3 x (colour)
  • I/O Signals
    Locking Hirose MXR-8R-8SA(71)
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixels
    2.2 MP
  • Trigger Mode
    Hardware and software triggerable
  • Warranty
    Four year
  • Compliances
    FCC Class B, CE Certified
  • Compatible System
    Windows XP, Windows Vista, Windows 7, Windows 8, 32 and 64-bit operating systems
  • Chrome
    Color, Monochrome, Near-Infrared
  • Lens Mount
    C-Mount
  • Voltage(DC)
    5 VDC
  • Power Supply
    USB bus power (optional 5 V DC, 700 mA minimum, power through Hirose)
  • Power Consumption
    5 V DC @ 700 mA, ~3.5 W
  • Optical Diagonal
    12.76mm
  • RoHs
    Yes
  • Sensor Manufacturer
    CMOSIS
  • Sensor Model Number
    CMV2000

Physical Properties

  • Dimension
    43 x 43 x 55 mm
  • Weight
    138 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
