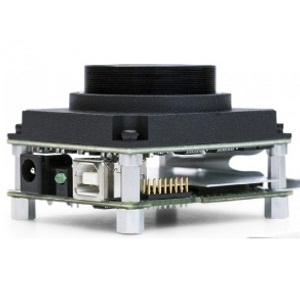

Lw130R

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

The Lw130R from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 1.4 MP, Frame Rate 30 fps, Quantum Efficiency(QE) 32%, 44 %, Bit Depth 8 Bit, 14 Bit. More details for Lw130R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Lw130R
  • Manufacturer
    Lumenera Corporation
  • Description
    Very Low Noise Research-Grade 1.4 Megapixel USB 2.0 Camera Module

Applications

  • Application
    Custom and OEM Microscopy
  • Application Industry
    Entertainment and Media, Scientific and Research

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Digital Cameras
  • Mega Pixels
    1.4 MP
  • Resolution
    1392 x 1040 Pi x el
  • Sensor Type
    CCD
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    30 fps
  • Pixel Size(H x V)
    4.65 x 4.65 µm
  • Quantum Efficiency(QE)
    32%, 44 %
  • Active Image Area
    7.6 x 6.2 mm
  • Full Well Capacity :
    14,500 e
  • Exposure Time :
    48 µs to 500 ms (video), 5.4 µs to 8 min (snapshot)
  • Sensor Format
    1/2 Inches
  • Dynamic Range
    64.6 dB
  • Bit Depth
    8 Bit, 14 Bit
  • Scanning Method
    Progressive Scanning
  • Dark Current
    1 e-/s at 22 ºC
  • Color / Bit Depth
    Bit Depth: 8 and 14 bit
  • Detector Sensitivity
    Peak Sensitivity: 2.5 DN/(nJ/cm2) [at 8-bit, 1 x gains]
  • Read Noise
    8.5 e-
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    0.5 to 15 x
  • I/O Signals
    16 pin Molex connector
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2 x 2, 4 x 4
  • Pixels
    1.4 MP
  • Trigger Mode
    Hardware and software triggerable
  • Warranty
    Four year
  • Compliances
    FCC Class B ready (board level) FCC Class B, CE Certified (enclosed)
  • Compatible System
    Windows XP, Vista, 7, 8, and Linux - both 32 and 64-bit
  • Chrome
    Color, Monochrome
  • Lens Mount
    Adjustable C-mount standard, optional adjustable CS-mount available
  • Voltage(DC)
    5 VDC
  • Power Supply
    USB bus power, or external 5 V DC, 500mA
  • Power Consumption
    2.5 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    ICX205

Physical Properties

  • Dimension
    50.8 x 63.5 x 42.9 mm (board level), 57.2 x 97.8 x 44.9 mm (enclosed)
  • Weight
    130 to 300 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
