SKYnyx2-1

Scientific & Industrial Camera by Lumenera Corporation
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumenera Corporation.

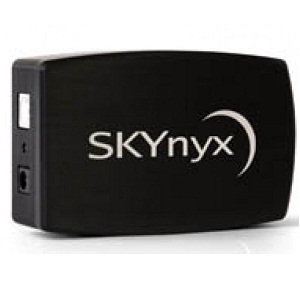

The SKYnyx2-1 from Lumenera Corporation is a Scientific & Industrial Camera with Mega Pixels 1.4 MP, Frame Rate 15 fps, Bit Depth 8 Bit, 12 Bit. More details for SKYnyx2-1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SKYnyx2-1
  • Manufacturer
    Lumenera Corporation
  • Description
    1.4 Megapixel Astrophotography USB 2.0 Camera

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Telescopic Cameras, Digital Cameras
  • Mega Pixels
    1.4 MP
  • Resolution
    1392 x 1040 Pi x el
  • Sensor Type
    CCD
  • Shutter Type
    Global Shutter
  • Frame Rate
    15 fps
  • Pixel Size(H x V)
    4.65 x 4.65 µm
  • Active Image Area
    6.5 x 4.8mm array
  • Sensor Format
    1/2 Inches
  • Dynamic Range
    58 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Scanning Method
    Progressive Scanning
  • Dark Current
    2 e-/s
  • Color / Bit Depth
    Bit Depth: 8 and 12 bit
  • Read Noise
    12 e- rms
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Exposure Mode
    Automatic / Manual
  • Gain Range
    1.0 to 10 x programmable
  • Operating Humidity
    5 to 95 %, non-condensing
  • Pixel Binning
    2 x 2, 3 x 3, 4 x 4
  • Pixels
    1.4 MP
  • Warranty
    One year
  • Compliances
    FCC Class BE, CE Certified
  • Compatible System
    Windows XP, Vista, 7, both 32 and 64-bit
  • Chrome
    Color, Monochrome
  • Lens Mount
    T-Mount
  • Voltage(DC)
    5 VDC
  • Power Supply
    USB bus power, or external 5 V DC, 500mA
  • Power Consumption
    2.5 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    ICX205

Physical Properties

  • Dimension
    64 x 97.78 x 42.67 mm (enclosed)
  • Weight
    320 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
