7211-1190-0102

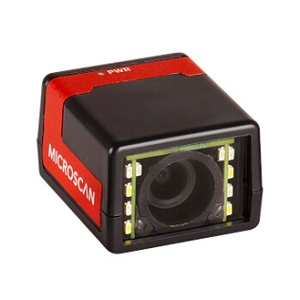

Scientific & Industrial Camera by Omron Americas
1,628 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Omron Americas.

The 7211-1190-0102 from Omron Americas is a Scientific & Industrial Camera with Mega Pixels 0.34 MP, Frame Rate 52 fps. More details for 7211-1190-0102 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    7211-1190-0102
  • Manufacturer
    Omron Americas
  • Description
    0.34 Mega Pixel Cameras With 52 fps

Applications

  • Application
    Imaging, Automation, Industrial, Life sciences, Clinical instrumentation, Package and Label Inspection, Machine Vision
  • Application Industry
    Industrial Inspection and Automation, Medical and Healthcare, Consumer Electronics

Connections & Interface

  • Data Interface
    USB 2.0

General Parameters

  • Camera Type
    Area Scan Cameras, Machine Vision Cameras
  • Mega Pixels
    0.34 MP
  • Resolution
    752(H) x 480(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    52 fps
  • Pixel Size(H x V)
    6 µm
  • Active Image Area
    4.51 x 2.88 mm
  • Exposure Time :
    50 to 66667 µs
  • Sensor Configurations
    Monochrome
  • Operating Humidity
    5 to 95%
  • Pixels
    0.34 MP
  • Chrome
    Monochrome
  • Power Supply
    5 VDC

Physical Properties

  • Dimension
    24 x 34 x 39 mm
  • Weight
    26 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -50 to 75 Degree C
