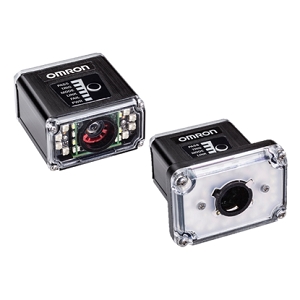

F430-F000W03M-SRV

Scientific & Industrial Camera by Omron Americas
1,628 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Omron Americas.

The F430-F000W03M-SRV from Omron Americas is a Scientific & Industrial Camera with Mega Pixels 0.34 MP, Frame Rate 52 fps, Wavelength Range 625 nm. More details for F430-F000W03M-SRV can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    F430-F000W03M-SRV
  • Manufacturer
    Omron Americas
  • Description
    Machine Vision Smart Cameras with 52 fps

Applications

  • Application
    Machine Vision, Industrial
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics

Connections & Interface

  • Data Interface
    RS-232, Serial Communication, Power over Ethernet (PoE)

General Parameters

  • Camera Type
    Area Scan Cameras, Machine Vision Cameras
  • Mega Pixels
    0.34 MP
  • Resolution
    752(H) x 480(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    52 fps
  • Wavelength Range
    625 nm
  • Exposure Time :
    50 to 66667 µs
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Visible
  • Operating Humidity
    5% (Operating) to 95% (Storage)
  • trigger Input Signals
    New Master, Bi-Directional, Optoisolated
  • Pixels
    0.34 MP
  • Trigger Mode
    External Trigger, Communication Trigger
  • trigger Output Signals
    Bi-Directional, Optoisolated
  • Camera Window
    Acrylic
  • Chrome
    Monochrome
  • Power Supply
    4.75 to 30 VDC

Physical Properties

  • Camera Housing
    Aluminum Diecast, Alumite (Black)
  • Dimension
    44.5 x 44.5 x 25.4 mm (W x D x H) (Main Body), 170 x 117 x 86 mm (W x D x H) (Packaging)
  • Weight
    68 g (Main Body) 174 g (Packaging)

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -50 to 75 Degree C
