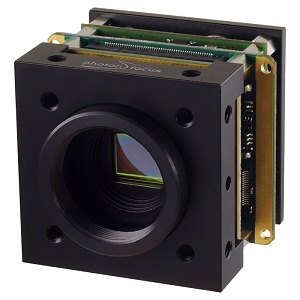

BL1-D1312-160-CL

Scientific & Industrial Camera by PHOTONFOCUS AG
118 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PHOTONFOCUS AG.

The BL1-D1312-160-CL from PHOTONFOCUS AG is a Scientific & Industrial Camera with Mega Pixels 1.4 MP, Frame Rate 108 fps, Wavelength Range 350 to 980 nm (Monochrome), 320 to 1000 nm (NIR), Quantum Efficiency(QE) <50%, Bit Depth 8 Bit, 10 Bit, 12 Bit (Greyscale). More details for BL1-D1312-160-CL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BL1-D1312-160-CL
  • Manufacturer
    PHOTONFOCUS AG
  • Description
    108 fps Board level Camera HDR With Camera Link Interface

Applications

  • Application
    OEM
  • Application Industry
    Entertainment and Media

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Board Cameras
  • Mega Pixels
    1.4 MP
  • Resolution
    1312(H) x 1082(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    108 fps
  • Wavelength Range
    350 to 980 nm (Monochrome), 320 to 1000 nm (NIR)
  • Pixel Size(H x V)
    8 x 8 µm
  • Quantum Efficiency(QE)
    <50%
  • Active Image Area
    10.48 x 8.64 µm
  • Full Well Capacity :
    90 ke-
  • Exposure Time :
    10 µs to 419 ms
  • Sensor Format
    1 Inch
  • Dynamic Range
    60 to 120 dB
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit (Greyscale)
  • Dark Current
    4000 e-/s
  • Detector Sensitivity
    295 x 103 DN / (J/m2) (Monochrome), 305 x 103 DN / (J/m2) (NIR)
  • SNR
    300:1
  • Read Noise
    110 e-
  • Sensor Configurations
    Monochrome
  • Operating Humidity
    20 to 80% RH
  • Pixels
    1.4 MP
  • Trigger Mode
    Free running (non triggered), external Trigger, SWTrigger
  • Vertical Clock Speed
    80 MHz
  • Compliances
    CE, WEEE, ROHS
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount, CS-Mount
  • Power Supply
    12 VDC
  • Power Consumption
    <3.3 W
  • Optical Diagonal
    13.6 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Photonfocus
  • Sensor Model Number
    A1312
  • Note
    Fixed pattern noise (FPN): <1DN RMS

Physical Properties

  • Camera Housing
    Board Level
  • Dimension
    53 x 46 x 42 mm3
  • Weight
    126 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -25 to 60 Degree C
