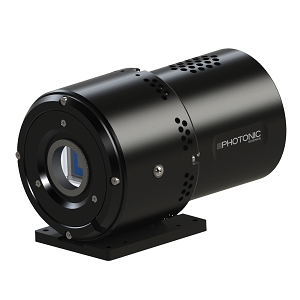

Nightfall-HR

Scientific & Industrial Camera by Photonic Science
12 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonic Science.

The Nightfall-HR from Photonic Science is a Scientific & Industrial Camera with Mega Pixels 4.6 MP, Frame Rate 8 to 30 fps, Wavelength Range 380 to 1100 nm, Bit Depth 12 bit, 16 bit. More details for Nightfall-HR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Nightfall-HR
  • Manufacturer
    Photonic Science
  • Description
    4.6 µm Pixel Sie Cameras With 8 to 30 fps

Applications

  • Application
    Ground based Surveillance, Marine Perimeter Surveillance, Airborne Surveillance
  • Application Industry
    Security and Surveillance

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), Camera Link

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    4.6 MP
  • Resolution
    4096(H) x 2300(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    8 to 30 fps
  • Wavelength Range
    380 to 1100 nm
  • Pixel Size(H x V)
    4.6 x 4.6 µm
  • Active Image Area
    18.9 x 10.6 mm (Sensor Size)
  • Full Well Capacity :
    70,000 e-
  • Exposure Time :
    25 µs up to 60 s
  • Spectral Range
    380 to 1100 nm
  • Dynamic Range
    >80 dB
  • Bit Depth
    12 bit, 16 bit
  • Dark Current
    <2 e-/pixel/s
  • Non-Linearity
    <1%
  • Read Noise
    0.5 e-
  • Detection Wavelength Range
    Near IR
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Pixels
    4.6 MP
  • ADC Resolution
    12 Bit, 16 Bit
  • Optical Diagonal
    21.6 mm
