PSEL VGA Extended Wavelngth SWIR 15µm

Scientific & Industrial Camera by Photonic Science
12 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonic Science.

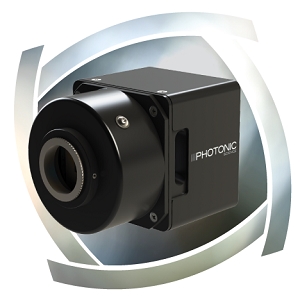

The PSEL VGA Extended Wavelngth SWIR 15µm from Photonic Science is a Scientific & Industrial Camera with Mega Pixels 0.33 MP, Frame Rate 174 to 7200 fps, Wavelength Range 100 to 2200 nm, Quantum Efficiency(QE) 0 to 80%, Bit Depth 14 Bit, 16 Bit. More details for PSEL VGA Extended Wavelngth SWIR 15µm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PSEL VGA Extended Wavelngth SWIR 15µm
  • Manufacturer
    Photonic Science
  • Description
    0.33 MP SWIR InGaAs Gigabit Ethernet(GigE), Camera Link SWIR Scientific Cameras

Applications

  • Application
    Semiconductor Inspection, SWIR Handheld Vision Enhancement, SWIR Airborne Payload, Photoluminescence For Solar Cells, Astronomy, Hyperspectral Imaging, Laser Beam Profiling, Spectroscopy
  • Application Industry
    Scientific and Research, Consumer Electronics

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), Camera Link

General Parameters

  • Camera Type
    Hyperspectral Cameras, SWIR Cameras
  • Mega Pixels
    0.33 MP
  • Resolution
    640(H) x 512(V)
  • Sensor Type
    SWIR InGaAs
  • Frame Rate
    174 to 7200 fps
  • Wavelength Range
    100 to 2200 nm
  • Pixel Size(H x V)
    15 x 15 µm
  • Quantum Efficiency(QE)
    0 to 80%
  • Active Image Area
    Sensor Size: 9.6 x 7.68 mm
  • Full Well Capacity :
    20 ke to 1.5 Me-
  • Exposure Time :
    30 µs to 20 ms
  • Spectral Range
    100 to 2200 nm
  • Bit Depth
    14 Bit, 16 Bit
  • Dark Current
    <300 fA (Air Cooled), <20 fA (Water Cooled)
  • Read Noise
    28 to 800 e-
  • Sensor Configurations
    Hyperspectral
  • Detection Wavelength Range
    Short-Wave IR
  • Cooling Method
    Liquid Cooling, Air Cooling
  • Pixels
    VGA
  • ADC Resolution
    14 Bit, 16 Bit
  • Chrome
    SWIR
  • Note
    Sensor Temperature: -25 Degree C (Air Cooled), -50 Degree C (Water Cooled)

Technical Documents
Click to view more product details on manufacturer's website
