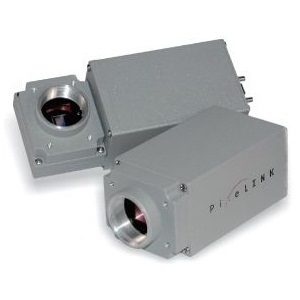

PL-B953U

Scientific & Industrial Camera by PixeLINK
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PixeLINK.

The PL-B953U from PixeLINK is a Scientific & Industrial Camera with Mega Pixels 0.8 MP, Frame Rate 20 fps, Bit Depth 8 Bit, 12 Bit. More details for PL-B953U can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-B953U
  • Manufacturer
    PixeLINK

Applications

  • Application
    Automated Inspection, PCB and Semiconductor Inspection, Container Inspection, Food and Beverage Inspection
  • Application Industry
    Industrial Inspection and Automation, Scientific and Research

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    0.8 MP
  • Resolution
    1024(H) x 768(V)
  • Sensor Type
    CCD
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    20 fps
  • Pixel Size(H x V)
    4.65 x 4.65 µm(H x V)
  • Active Image Area
    4.76 x 3.57 mm
  • Exposure Time :
    63.5 µs to 10 sec
  • Sensor Format
    1/3 Inches
  • Dynamic Range
    59.7 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Read Noise
    4.24 e-
  • Sensor Configurations
    Monochrome
  • Cooling Method
    Uncooled
  • Exposure Mode
    Auto, Manual
  • Gain Range
    0 to 24.57 dB
  • Pixels
    0.8 MP
  • Trigger Mode
    Free running, software, hardware
  • Compliances
    CE
  • Compatible System
    Windows 2000, XP and Vista (32bit)
  • Chrome
    Monochrome
  • Lens Mount
    CS- Mount
  • Voltage(DC)
    5 VDC
  • Power Consumption
    FireWire 3.8 W, USB 3.3 W, GigE 4.8 W
  • Optical Diagonal
    5.95 mm
  • Readout Rate
    20 MHz
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    ICX204

Physical Properties

  • Dimension
    118.75 x 50 x 41 mm (straight), 110 x 50 x 41 mm (right angle)
  • Weight
    238 g

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -45 to 85 Degree C
