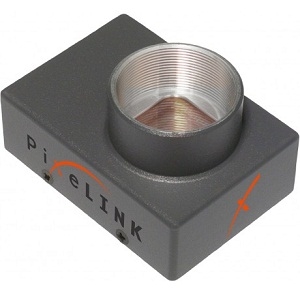

PL-D7512CU

Scientific & Industrial Camera by PixeLINK
30 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PixeLINK.

The PL-D7512CU from PixeLINK is a Scientific & Industrial Camera with Mega Pixels 12.29 MP, Frame Rate 35 fps, Wavelength Range 525 nm, Bit Depth 8 Bit, 12 Bit. More details for PL-D7512CU can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-D7512CU
  • Manufacturer
    PixeLINK
  • Description
    The PL-D7512CU USB 3.0 enclosed camera provides high resolution, low noise images for outstanding value in a broad range of industrial applications.

Applications

  • Application
    Parts Inspection, Strength / Stress Testing, Medical Imaging, PCB & Flat Panel Display Inspection, Metrology, Biometric
  • Application Industry
    Scientific and Research, Industrial Inspection and Automation, Medical and Healthcare, Security and Surveillance

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    12.29 MP
  • Resolution
    4096(H) x 3000(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    35 fps
  • Wavelength Range
    525 nm
  • Pixel Size(H x V)
    3?.45 x 3.45 µm
  • Spectral Range
    525 nm
  • Sensor Format
    1.1 Inches
  • Dynamic Range
    69.5 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Sensor Configurations
    Monochrome, Bayer
  • Cooling Method
    Uncooled
  • Pixels
    12.29 MP
  • Chrome
    Monochrome, Bayer
  • Lens Mount
    C Mount, CS Mount
  • Optical Diagonal
    17.6 mm
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX253

Physical Properties

  • Dimension
    32 x 48 x 11 mm
  • Weight
    35.8 g without optics
