Model 2

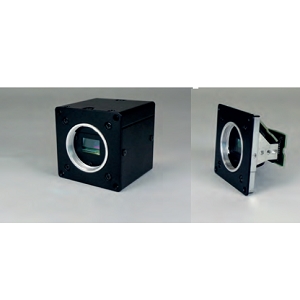

Scientific & Industrial Camera by PureSpectra Ltd.
2 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PureSpectra Ltd..

The Model 2 from PureSpectra Ltd. is a Scientific & Industrial Camera with Mega Pixels 4.65 MP, Frame Rate 44 fps, Wavelength Range 400 to 680 nm, Bit Depth 8 Bit, SNR 48 dB. More details for Model 2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Model 2
  • Manufacturer
    PureSpectra Ltd.
  • Description
    Tripple Sensor System RGB - High Res

Applications

  • Application
    Conventional image processing, Agriculture robotic systems, Sorting Systems
  • Application Industry
    Industrial Inspection and Automation, Scientific and Research

Connections & Interface

  • Data Interface
    Serial Communication

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    4.65 MP
  • Resolution
    2448 (H) x 1898 (V)
  • Sensor Type
    CMOS
  • Frame Rate
    44 fps
  • Wavelength Range
    400 to 680 nm
  • Active Image Area
    6.71mm (H) x 5.2mm (V)
  • Spectral Range
    400 to 680 nm
  • Sensor Format
    1/2 Inches
  • Bit Depth
    8 Bit
  • SNR
    48 dB
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Visible
  • Pixels
    4.65 MP
  • trigger Output Signals
    GPIO
  • ADC Resolution
    8 Bit
  • Compatible System
    Ubuntu 18.02
  • Chrome
    Visible, Monochrome
  • Lens Mount
    C-Mount
  • Voltage(DC)
    5 VDC

Physical Properties

  • Dimension
    43 mm x 43 mm x 43 mm (L x B x H)
