Ray 1

Scientific & Industrial Camera by Ray Imaging Solutions
Request Quote

Note: Your Quotation Request will be directed to Ray Imaging Solutions.

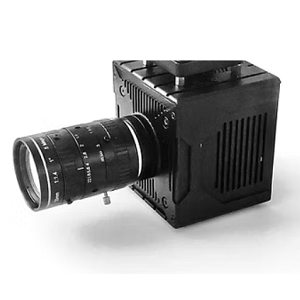

The Ray 1 from Ray Imaging Solutions is a Scientific & Industrial Camera with Mega Pixels 0.32 MP, Frame Rate 20 fps, Wavelength Range 900 to 1700 nm. More details for Ray 1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Ray 1
  • Manufacturer
    Ray Imaging Solutions
  • Description
    900 to 1700 nm SWIR Camera with 20 fps frame rate

Connections & Interface

  • Data Interface
    USB Micro-B 3.0

General Parameters

  • Camera Type
    SWIR Cameras
  • Mega Pixels
    0.32 MP
  • Resolution
    640(H) x 512(V)
  • Frame Rate
    20 fps
  • Wavelength Range
    900 to 1700 nm
  • Pixel Size(H x V)
    15 µm
  • Active Image Area
    9.68 x 7.68 mm
  • Dynamic Range
    33 dB
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Pixels
    0.32 MP, VGA
  • Camera(f-Number)
    F/1.4 to F/22
  • Compatible System
    Windows, Ubuntu
  • Lens Mount
    C-Mount
  • Power Supply
    12 VDC
  • Note
    EFL: 25 mm, FOV: 30.6 x 40.1 x 47.6 (deg)

Physical Properties

  • Dimension
    68 x 70 x 60 mm (Camera), 36.5 (Dia) x 54.9 mm (Lens)
  • Weight
    665 g

Temperature

  • Operating Temperature
    -10 to 50 Degree C
