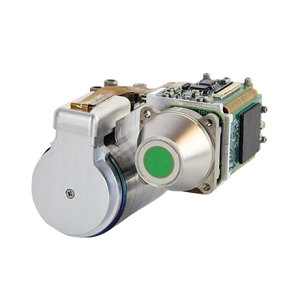

HEXABLU®

Scientific & Industrial Camera by Sierra-Olympic Systems, Inc.
20 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sierra-Olympic Systems, Inc..

The HEXABLU® from Sierra-Olympic Systems, Inc. is a Scientific & Industrial Camera with Mega Pixels 1.2 MP, Frame Rate Up to 120 Hz, Wavelength Range 3 to 5 µm (MWIR). More details for HEXABLU® can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HEXABLU®
  • Manufacturer
    Sierra-Olympic Systems, Inc.
  • Description
    6 Micron HD Hot MWIR Camera Core by DRS

Applications

  • Application
    Security and surveillance, Manned, unmanned vehicles, Custom Militarty Systems, Around-the-clock monitoring, Long-distance DRI
  • Application Industry
    Security and Surveillance

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1.2 MP
  • Resolution
    1280(H) x 960(V)
  • Sensor Type
    Mercury Cadmium Telluride(MCT)
  • Frame Rate
    Up to 120 Hz
  • Wavelength Range
    3 to 5 µm (MWIR)
  • Spectral Range
    3 to 5 µm (MWIR)
  • Detector Type
    Mercury Cadmium Telluride (MCT)
  • Detector Sensitivity
    <30 mk
  • Detection Wavelength Range
    Mid-Wave IR
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Pixels
    1.2 MP
  • Chrome
    MWIR, Infrared
  • Voltage(DC)
    5 to 12 VDC

Physical Properties

  • Detector Pitch
    6 µm
  • Dimension
    68 x 61 x 46 mm (L x W x H)

Temperature

  • Operating Temperature
    -40 to 71 Degree C
