TAMARISK®

Scientific & Industrial Camera by Sierra-Olympic Systems, Inc.
20 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sierra-Olympic Systems, Inc..

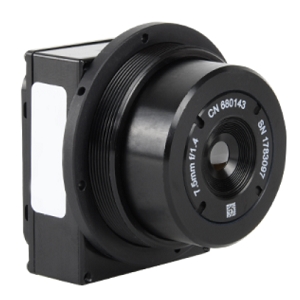

The TAMARISK® from Sierra-Olympic Systems, Inc. is a Scientific & Industrial Camera with Mega Pixels 0.3 MP, 0.07 MP, Frame Rate 9 Hz, 30 Hz (640 model), 9 Hz, 60 Hz (320 model), Wavelength Range 8 to 14 µm (LWIR), Bit Depth 14 Bit. More details for TAMARISK® can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TAMARISK®
  • Manufacturer
    Sierra-Olympic Systems, Inc.
  • Description
    0.3 MP, 0.07 MP High Performance in a Low-swap Package

Applications

  • Application
    Security and Survelliance, Airborne
  • Application Industry
    Security and Surveillance

Connections & Interface

  • Data Interface
    Camera Link, USB, RS-232

General Parameters

  • Camera Type
    Thermal Cameras
  • Mega Pixels
    0.3 MP, 0.07 MP
  • Resolution
    640(H) x 480(V), 320(H) x 240(V)
  • Sensor Type
    Microbolometer
  • Shutter Type
    Electronic Shutter, Mechanical Shutter
  • Frame Rate
    9 Hz, 30 Hz (640 model), 9 Hz, 60 Hz (320 model)
  • Wavelength Range
    8 to 14 µm (LWIR)
  • Spectral Range
    8 to 14 µm (LWIR)
  • Bit Depth
    14 Bit
  • Color / Bit Depth
    14 Bit
  • Detector Type
    Uncooled VOx Microbolometer
  • Detector Sensitivity
    <50 mK
  • Detection Wavelength Range
    Long-Wave IR
  • Cooling Method
    Uncooled
  • Pixels
    0.3 MP, 0.07 MP
  • Chrome
    LWIR, Infrared
  • Voltage(DC)
    3 to 18 V
  • Power Consumption
    <1.2 to 1.4 W (Dissipation)

Physical Properties

  • Detector Pitch
    17 µm

Temperature

  • Operating Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
