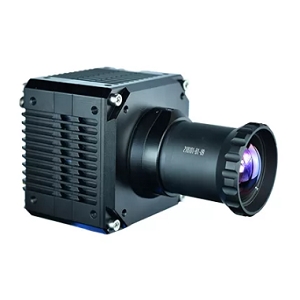

VAYU HD-I

Scientific & Industrial Camera by Sierra-Olympic Systems, Inc.
20 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sierra-Olympic Systems, Inc..

The VAYU HD-I from Sierra-Olympic Systems, Inc. is a Scientific & Industrial Camera with Mega Pixels 2 MP, Frame Rate 60 Hz, Wavelength Range 8 to 14 µm (LWIR), Bit Depth 16 Bit. More details for VAYU HD-I can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VAYU HD-I
  • Manufacturer
    Sierra-Olympic Systems, Inc.
  • Description
    1920(H) x 1200(V) Thermal Camera with 60 Hz Frame rate

Applications

  • Application
    Wide area surveillance, Aerial mapping, Navigation, surveying, Driver vision, Film production
  • Application Industry
    Security and Surveillance, Outdoor and Environmental Monitoring, Traffic Management and Intelligent Transportation Systems (ITS), Entertainment and Media

Connections & Interface

  • Data Interface
    USB, RS-422, Serial Communication

General Parameters

  • Camera Type
    Thermal Cameras
  • Mega Pixels
    2 MP
  • Resolution
    1920(H) x 1200(V)
  • Sensor Type
    Microbolometer
  • Shutter Type
    Mechanical Shutter
  • Frame Rate
    60 Hz
  • Wavelength Range
    8 to 14 µm (LWIR)
  • Spectral Range
    8 to 14 µm (LWIR)
  • Bit Depth
    16 Bit
  • Color / Bit Depth
    16 Bit
  • Detector Type
    Uncooled VOx Microbolometer
  • Detector Sensitivity
    50 mK
  • Detection Wavelength Range
    Long-Wave IR
  • Cooling Method
    Uncooled
  • Pixels
    2 MP
  • Camera(f-Number)
    f/1.2
  • Compliances
    FCC
  • Chrome
    Infrared
  • Voltage(DC)
    11 to 14 VDC
  • Power Consumption
    <12 to 15 W (Dissipation)
  • Note
    Dimensions: 147 x 85 x 85 mm (25 mm Lens), 138 x 85 x 85 mm (50 mm Lens), 167 x 89 x 89 mm (87 mm Lens), Weight: 860 g (25 mm Lens), 861 g (50 mm Lens), 1174 g (87 mm Lens)

Physical Properties

  • Detector Pitch
    12 µm

Temperature

  • Operating Temperature
    -15 to 65 Degree C
