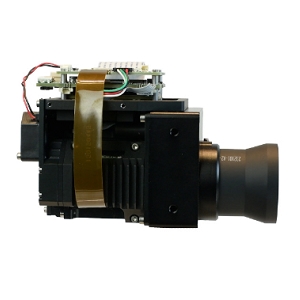

VENTUS HD6-FIXED

Scientific & Industrial Camera by Sierra-Olympic Systems, Inc.
20 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sierra-Olympic Systems, Inc..

The VENTUS HD6-FIXED from Sierra-Olympic Systems, Inc. is a Scientific & Industrial Camera with Mega Pixels 1.2 MP, Frame Rate 30 to 60 Hz, Wavelength Range 3 to 5 µm (MWIR), Bit Depth 14 Bit. More details for VENTUS HD6-FIXED can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VENTUS HD6-FIXED
  • Manufacturer
    Sierra-Olympic Systems, Inc.
  • Description
    1280(H) x 960(V) Thermal Camera with 30 to 60 Hz Frame rate

Applications

  • Application
    Critical Infrastructure, Airborne, Dismounted Sensors, Terrestrial Surveillance
  • Application Industry
    Security and Surveillance

Connections & Interface

  • Data Interface
    Camera Link, HDMI/HD-SDI

General Parameters

  • Camera Type
    Thermal Cameras
  • Mega Pixels
    1.2 MP
  • Resolution
    1280(H) x 960(V)
  • Sensor Type
    Mercury Cadmium Telluride(MCT)
  • Frame Rate
    30 to 60 Hz
  • Wavelength Range
    3 to 5 µm (MWIR)
  • Spectral Range
    3 to 5 µm (MWIR)
  • Bit Depth
    14 Bit
  • Color / Bit Depth
    14 Bit
  • Detector Type
    Mercury Cadmium Telluride
  • Detector Sensitivity
    30 mk
  • Detection Wavelength Range
    Mid-Wave IR
  • Cooling Method
    Cooled
  • Pixels
    1.2 MP
  • Camera(f-Number)
    f/2.6
  • Chrome
    MWIR, Infrared
  • Voltage(DC)
    12 VDC
  • Power Consumption
    <5.6 to 14 W (Dissipation)

Physical Properties

  • Detector Pitch
    6 µm

Temperature

  • Operating Temperature
    -20 to 40 Degree C (Std. Config), -40 to 71 Degree C (Core Config)
