Kirana

Scientific & Industrial Camera by Specialised Imaging
6 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Specialised Imaging.

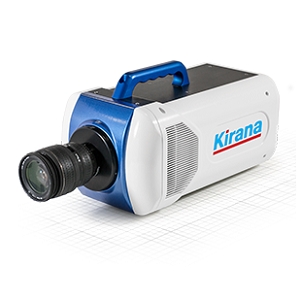

The Kirana from Specialised Imaging is a High-Speed CMOS Video Camera with a speed of up to 5,000,000 fps. The 924(W) x 768(H) pixels, 180 frames camera has an exposure time of up to 100 ns with a pixel size of 30µm. Full resolution is maintained at all speeds. Up to 11 consecutive events can be captured at a rate of 250 ms per event and 2s of video can be stored when operating at 1,000 fps. It measures 228mm (W) x 192mm (H) x 416mm (D), weighs 10.5 Kg and is ideal for combustion research, biological/microscopy and mechanics applications.

Product Specifications

View similar products

Product Details

  • Part Number
    Kirana
  • Manufacturer
    Specialised Imaging
  • Description
    The Ultimate High-Speed Video Camera

Applications

  • Application
    Ballistics, Detonics, Digital Image Correlation, Combustion research, Biological/Microscopic, Fracture Mechanics, Cavitation and Multiphase flow, Materials research testing, Schlieren imaging
  • Application Industry
    Scientific and Research, Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    0.71 MP
  • Resolution
    924 x 768
  • Sensor Type
    CMOS
  • Shutter Type
    Electronic Shutter, Mechanical Shutter
  • Frame Rate
    5 fps
  • Pixel Size(H x V)
    30 x 30 µm
  • Exposure Time :
    100ns to 10ns
  • Sensor Configurations
    Monochrome, B/W
  • Operating Humidity
    10-90%
  • Pixels
    0.710 MP
  • Trigger Mode
    Start, End, and Center
  • Chrome
    Monochrome, B/W
  • Lens Mount
    Nikon F-mount
  • Power Supply
    100 to 240 V
  • Note
    Data Format: 10bits

Physical Properties

  • Camera Head Size
    228 x 192 x 416 mm(W x H x D)
  • Weight
    10.5 Kg

Temperature

  • Operating Temperature
    -5 to 40 Degree C
  • Storage Temperature
    -10 to 50 Degree C
