exo249MGE

Scientific & Industrial Camera by SVS-VISTEK GmbH
Request Quote

Note: Your Quotation Request will be directed to SVS-VISTEK GmbH.

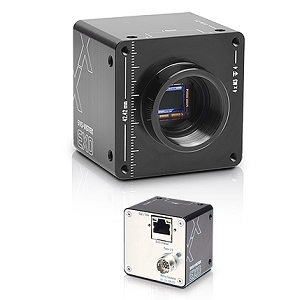

The exo249MGE from SVS-VISTEK GmbH is a Scientific & Industrial Camera with Mega Pixels 2.3 MP, Frame Rate 41 fps, Bit Depth 8 Bit, 12 Bit, SNR 44 dB. More details for exo249MGE can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    exo249MGE
  • Manufacturer
    SVS-VISTEK GmbH
  • Description
    2.3 Mega Pixel CMOS Industrial Cameras With 41 fps

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), RS-232

General Parameters

  • Camera Type
    Area Scan Cameras, Progressive-Scan Cameras
  • Mega Pixels
    2.3 MP
  • Resolution
    1920(H) x 1200(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    41 fps
  • Pixel Size(H x V)
    5.86 x 5.86 µm (H x V)
  • Active Image Area
    11.25 x 7.03 mm (Sensor Size)
  • Exposure Time :
    34 µs to 1 s
  • Sensor Format
    1/1.2 Inches
  • Dynamic Range
    72 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Scanning Method
    Progressive Scanning
  • SNR
    44 dB
  • Sensor Configurations
    Monochrome
  • Exposure Mode
    Manual, Auto, External
  • Operating Humidity
    10 to 90% (Operating)
  • Pixels
    2.3 MP
  • Trigger Mode
    Internal, Software, External
  • Chrome
    Monochrome
  • Lens Mount
    C- Mount
  • Power Supply
    10 to 25 VDC
  • Power Consumption
    4.5 W
  • Optical Diagonal
    13.27 mm
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX249LLJ

Physical Properties

  • Dimension
    50 x 50 x 42.9 mm
  • Weight
    140 g

Temperature

  • Operating Temperature
    -10 to 60 Degree C
