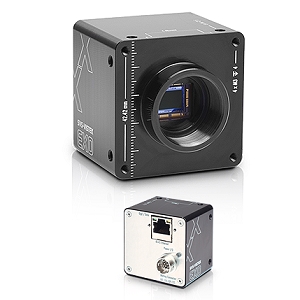

exo264MGE

Scientific & Industrial Camera by SVS-VISTEK GmbH
Request Quote

Note: Your Quotation Request will be directed to SVS-VISTEK GmbH.

The exo264MGE from SVS-VISTEK GmbH is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 24.5 fps, Bit Depth 8 Bit, 12 Bit, SNR 39.5 dB. More details for exo264MGE can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    exo264MGE
  • Manufacturer
    SVS-VISTEK GmbH
  • Description
    5 Mega Pixel CMOS Industrial Cameras With 24.5 fps

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), RS-232

General Parameters

  • Camera Type
    Area Scan Cameras, Progressive-Scan Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2448(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    24.5 fps
  • Pixel Size(H x V)
    3.45 x 3.45 µm (H x V)
  • Active Image Area
    8.45 x 7.07 mm (Sensor Size)
  • Exposure Time :
    28 µs to 1 s
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    72 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Scanning Method
    Progressive Scanning
  • SNR
    39.5 dB
  • Sensor Configurations
    Monochrome
  • Exposure Mode
    Manual, Auto, External
  • Operating Humidity
    10 to 90% (Operating)
  • Pixels
    5 MP
  • Trigger Mode
    Internal, Software, External
  • Chrome
    Monochrome
  • Lens Mount
    C- Mount
  • Power Supply
    10 to 25 VDC
  • Power Consumption
    4.5 W
  • Optical Diagonal
    11.01 mm
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX264LLR

Physical Properties

  • Dimension
    50 x 50 x 43 mm
  • Weight
    138 g

Temperature

  • Operating Temperature
    -10 to 60 Degree C
Click to view more product details on manufacturer's website
