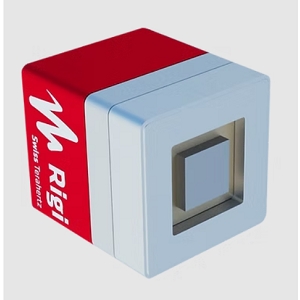

Rigi S1

Scientific & Industrial Camera by Swiss Terahertz
12 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Swiss Terahertz.

The Rigi S1 from Swiss Terahertz is a Scientific & Industrial Camera with Mega Pixels >1 MP (Array), Frame Rate 10 Hz, 30 Hz, 60 Hz. More details for Rigi S1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Rigi S1
  • Manufacturer
    Swiss Terahertz
  • Description
    80(H) x 80(V) Uncooled RIGI Camera with 25 µm Pixel Size

Applications

  • Application
    Beam Profiling, Non-Destructive Testing, Industrial Process Control
  • Application Industry
    Scientific and Research, Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    USB 3.0

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    >1 MP (Array)
  • Resolution
    80(H) x 80(V)
  • Sensor Type
    Microbolometer
  • Frame Rate
    10 Hz, 30 Hz, 60 Hz
  • Pixel Size(H x V)
    25 µm
  • Active Image Area
    >29 x 16 mm
  • Detector Type
    Uncooled FPA micro-bolometer array
  • Detector Sensitivity
    <1 to 18 THz
  • Sensor Configurations
    Infrared
  • Cooling Method
    Uncooled
  • Available Lenses
    Objective Lens
  • Pixels
    >1 MP (Array)
  • Integration Time
    50 s
  • Note
    Frequency: 4.6 THz, Power: 0.6 Erreur W, Cut-Off Frequency: 1 THz, 2 THz, 3 THz, 6 THz, 9 THz, 18 THz, Average Power Transmission: >80%, Out-Of-Band Transmission: <0.1%, NEP: <1.5 pW/Hz

Physical Properties

  • Camera Head Size
    Coin Size (Smallest)
  • Dimension
    3 x 3 x 4 cm (W x H x D)
  • Weight
    <200 g
