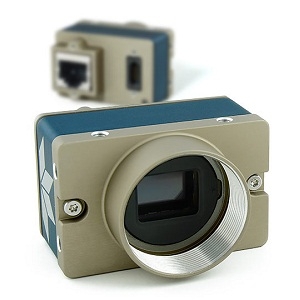

G3-GC10-C1280

Scientific & Industrial Camera by Teledyne DALSA Inc.
84 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The G3-GC10-C1280 from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 1.3 MP, Frame Rate 213 fps, Wavelength Range 400 to 700 nm, Bit Depth 8 Bit, 10 Bit (Data Format). More details for G3-GC10-C1280 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    G3-GC10-C1280
  • Manufacturer
    Teledyne DALSA Inc.

Applications

  • Application
    Electronics Manufacturing Inspection, Industrial Metrology, Intelligent Traffic Systems
  • Application Industry
    Industrial Inspection and Automation, Traffic Management and Intelligent Transportation Systems (ITS)

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)
  • Peripheral Communications
    Standard or screw mount RJ-45

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    1.3 MP
  • Resolution
    1280(H) x 1024(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    213 fps
  • Wavelength Range
    400 to 700 nm
  • Pixel Size(H x V)
    4.8 x 4.8 µm
  • Sensor Format
    1/2 Inches
  • Dynamic Range
    62.1 dB
  • Bit Depth
    8 Bit, 10 Bit (Data Format)
  • Color / Bit Depth
    Data Format: 8 to 10 Bit
  • Sensor Configurations
    Color
  • Cooling Method
    Uncooled
  • Pixels
    1.3 MP
  • Trigger Mode
    Programmable, or via external trigger
  • Chrome
    Color
  • Lens Mount
    C-Mount, CS-Mount
  • Power Supply
    10 to 36 VDC
  • Power Consumption
    3.6 to 4.9 W (Dissipation)
  • RoHs
    Yes
  • Sensor Manufacturer
    ON Semiconductor
  • Sensor Model Number
    Python 1300

Physical Properties

  • Dimension
    21.2 mm x 29 mm x 44 mm, 38.9 mm x 29 mm x 44 mm(LxWxH), (no lens adapter or connectors/with lens adapter and connectors)
  • Weight
    46 g

Temperature

  • Operating Temperature
    -20 to 60 Degree C
