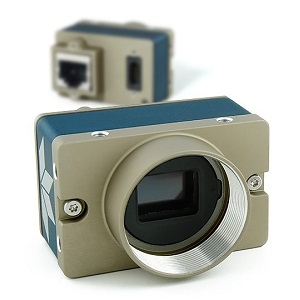

G3-GM11-M2420

Scientific & Industrial Camera by Teledyne DALSA Inc.
84 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The G3-GM11-M2420 from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 35 fps, Bit Depth 8 Bit, 12 Bit (Data Format). More details for G3-GM11-M2420 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    G3-GM11-M2420
  • Manufacturer
    Teledyne DALSA Inc.

Applications

  • Application
    Electronics Manufacturing Inspection, Industrial Metrology, Intelligent Traffic Systems
  • Application Industry
    Industrial Inspection and Automation, Traffic Management and Intelligent Transportation Systems (ITS)

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)
  • Peripheral Communications
    Standard or screw mount RJ-45

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2448(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Electronic Shutter, Global Shutter
  • Frame Rate
    35 fps
  • Pixel Size(H x V)
    3.45 x 3.45 µm
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    76.4 dB
  • Bit Depth
    8 Bit, 12 Bit (Data Format)
  • Color / Bit Depth
    Data Format: 8 to 12 Bit
  • Sensor Configurations
    Monochrome, B/W
  • Cooling Method
    Uncooled
  • Pixels
    5 MP
  • Trigger Mode
    Programmable, or via external trigger
  • Chrome
    Monochrome, B/W
  • Lens Mount
    C-Mount, CS-Mount
  • Power Supply
    10 to 36 VDC
  • Power Consumption
    3.6 to 4.9 W (Dissipation)
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    IMX264

Physical Properties

  • Dimension
    21.2 mm x 29 mm x 44 mm, 38.9 mm x 29 mm x 44 mm(LxWxH), (no lens adapter or connectors/with lens adapter and connectors)
  • Weight
    46 g

Temperature

  • Operating Temperature
    -20 to 60 Degree C
