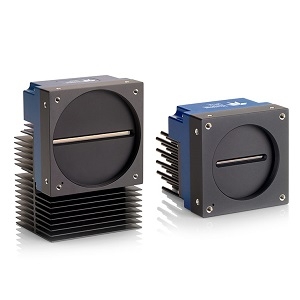

HL-FM-04K30H

Scientific & Industrial Camera by Teledyne DALSA Inc.
84 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The HL-FM-04K30H from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 0.79 MP, Wavelength Range 400 to 700 nm (Visible), 700 to 1000 nm (NIR), Bit Depth 8 Bit, 12 Bit, Line Rate 300 kHz. More details for HL-FM-04K30H can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HL-FM-04K30H
  • Manufacturer
    Teledyne DALSA Inc.
  • Description
    4k Monochrome CMOS TDI Camera

Applications

  • Application
    Flat Panel Inspection, Gene Sequencing, Digital Pathology, Printed Circuit Board Inspection, Web Inspection, Machine Vision
  • Application Industry
    Industrial Inspection and Automation, Medical and Healthcare

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    0.79 MP
  • Resolution
    4096(H) x 192(V)
  • Sensor Type
    CMOS
  • Wavelength Range
    400 to 700 nm (Visible), 700 to 1000 nm (NIR)
  • Pixel Size(H x V)
    5 µm x 5 µm
  • Spectral Range
    400 to 700 nm (Visible), 700 to 1000 nm (NIR)
  • Dynamic Range
    70 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Line Rate
    300 kHz
  • Line Rate
    300 kHz
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Visible to Near IR
  • Cooling Method
    Uncooled
  • Gain Range
    1x to 10x
  • I/O Signals
    Hirose 12-pin, GPIO
  • Pixels
    0.79 MP
  • Compliances
    CE, FCC, RoHS
  • Chrome
    Monochrome
  • Lens Mount
    M58 x 0.75
  • Power Supply
    12 to 24 VDC
  • Power Consumption
    <18 W (Power dissipation)

Physical Properties

  • Dimension
    76 mm x 76 mm x 85 mm
  • Weight
    500 g

Temperature

  • Operating Temperature
    0 to 65 Degree C
