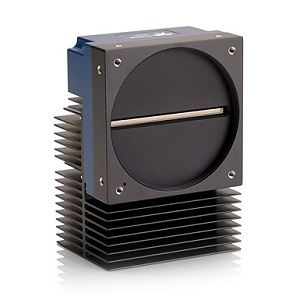

HL-HM-16K30H

Scientific & Industrial Camera by Teledyne DALSA Inc.
84 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The HL-HM-16K30H from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 3.15 MP, Wavelength Range 400 to 700 nm (Visible), 700 to 1000 nm (NIR), Bit Depth 8 Bit, 12 Bit, Line Rate 150 to 300 kHz. More details for HL-HM-16K30H can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HL-HM-16K30H
  • Manufacturer
    Teledyne DALSA Inc.
  • Description
    BSI TDI Monochrome / HDR Camera

Applications

  • Application
    Flat panel inspection, Wafer inspection, PCB and electronics, Gene sequencing, Digital pathology, Fluorescence imaging, General machine vision
  • Application Industry
    Industrial Inspection and Automation, Medical and Healthcare, Scientific and Research

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    3.15 MP
  • Resolution
    16384(H) x 192(V)
  • Sensor Type
    CMOS
  • Wavelength Range
    400 to 700 nm (Visible), 700 to 1000 nm (NIR)
  • Pixel Size(H x V)
    5 µm x 5 µm
  • Full Well Capacity :
    30 ke-
  • Spectral Range
    400 to 700 nm (Visible), 700 to 1000 nm (NIR)
  • Dynamic Range
    70 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Line Rate
    150 to 300 kHz
  • Line Rate
    150 to 300 kHz
  • Read Noise
    10 e-
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Visible to Near IR
  • Cooling Method
    Uncooled
  • I/O Signals
    Hirose 12-pin, GPIO
  • Pixels
    3.15 MP
  • Chrome
    Monochrome
  • Lens Mount
    M90 x 1
  • Power Supply
    12 to 24 VDC
  • Power Consumption
    <30 W (Power dissipation)

Physical Properties

  • Dimension
    97 mm x 140.5 mm x 78.6 mm (W x H x D)
  • Weight
    1200 g

Temperature

  • Operating Temperature
    0 to 65 Degree C
