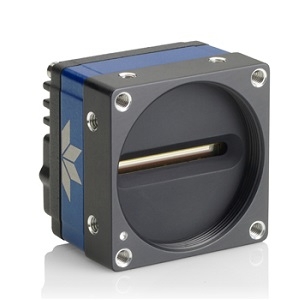

L2-GM-02K05B

Scientific & Industrial Camera by Teledyne DALSA Inc.
84 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The L2-GM-02K05B from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 0.002 MP, Wavelength Range 400 to 700 nm, Bit Depth 8 Bit, 12 Bit, Line Rate 50 kHz. More details for L2-GM-02K05B can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L2-GM-02K05B
  • Manufacturer
    Teledyne DALSA Inc.
  • Description
    GigE Mono Line Scan Camera

Applications

  • Application
    Automated optical inspection, Battery inspection, Optical sorting systems, Food packaging, Film and textile, Wood inspection, Printed materials inspection, Materials grading and inspection, Web inspection, General purpose machine vision
  • Application Industry
    Industrial Inspection and Automation, Consumer Electronics, Scientific and Research

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), Power over Ethernet (PoE)

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    0.002 MP
  • Resolution
    2048(H) x 1(V)
  • Sensor Type
    CMOS
  • Wavelength Range
    400 to 700 nm
  • Pixel Size(H x V)
    14 µm
  • Full Well Capacity :
    30 ke-
  • Spectral Range
    400 to 700 nm
  • Dynamic Range
    72 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Line Rate
    50 kHz
  • Line Rate
    50 kHz
  • Read Noise
    8.5 e-
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Visible
  • Cooling Method
    Uncooled
  • Pixels
    0.002 MP
  • Chrome
    Visible
  • Lens Mount
    M42
  • Power Supply
    12 to 48 VDC
  • Power Consumption
    <5 W (Power dissipation)

Physical Properties

  • Dimension
    46 mm x 46 mm x 37 mm
  • Weight
    111 g

Temperature

  • Operating Temperature
    -10 to 65 Degree C
