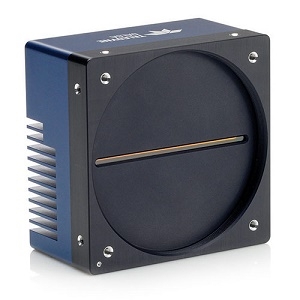

Piranha XL

Scientific & Industrial Camera by Teledyne DALSA Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The Piranha XL from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 0.2 MP, Wavelength Range 460 nm, 525 nm, 625 nm, Bit Depth 8 Bit (Data format), Line Rate 40 to 210 kHz. More details for Piranha XL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Piranha XL
  • Manufacturer
    Teledyne DALSA Inc.
  • Description
    Multi-line CMOS TDI camera delivering breakthrough performance

Applications

  • Application
    Flat panel display inspection, Film and web inspection, Printed circuit board inspection, Print inspection
  • Application Industry
    Industrial Inspection and Automation, Medical and Healthcare

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    0.2 MP
  • Resolution
    16352(H) x 12(V)
  • Sensor Type
    CMOS
  • Wavelength Range
    460 nm, 525 nm, 625 nm
  • Pixel Size(H x V)
    5 µm x 5 µm
  • Bit Depth
    8 Bit (Data format)
  • Line Rate
    40 to 210 kHz
  • Sensor Configurations
    Monochrome, Color
  • Cooling Method
    Uncooled
  • Gain Range
    Up to 10x
  • Pixels
    0.2 MP
  • ADC Resolution
    8 or 12 bit
  • Chrome
    Color, Monochrome
  • Lens Mount
    M90 x 1 mm
  • Power Consumption
    23 W (Dissipation)
  • RoHs
    Yes
  • Note
    NEE: 6.5 pJ/cm² @ 620 nm

Physical Properties

  • Dimension
    97 x 97 x 61 mm(W x H x D)

Temperature

  • Operating Temperature
    0 to 60 Degree C
