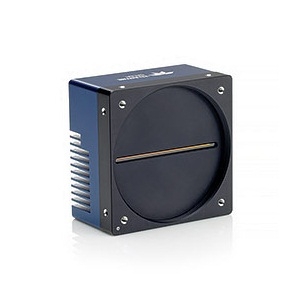

PX-HM-16K12X-00-R

Scientific & Industrial Camera by Teledyne DALSA Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The PX-HM-16K12X-00-R from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 0.2 MP, Bit Depth 8 Bit, 12 Bit (Data Format), Line Rate 125 kHz. More details for PX-HM-16K12X-00-R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PX-HM-16K12X-00-R
  • Manufacturer
    Teledyne DALSA Inc.
  • Description
    Piranha™ XL: Multi-line CMOS TDI delivers breakthrough performance

Applications

  • Application
    Flat panel display inspection, Film and web inspection, Printed circuit board inspection
  • Application Industry
    Industrial Inspection and Automation, Medical and Healthcare

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    0.2 MP
  • Resolution
    16352(H) x 12(V)
  • Sensor Type
    CMOS
  • Pixel Size(H x V)
    5 x 5 µm
  • Bit Depth
    8 Bit, 12 Bit (Data Format)
  • PRNU(photo response non-uniformity)
    Responsitivity: 1200 DN/(nJ/cm²), 12 bit, 1x gain
  • Color / Bit Depth
    Data Format: 8 to 12 Bit
  • Line Rate
    125 kHz
  • Sensor Configurations
    Monochrome
  • Cooling Method
    Uncooled
  • Gain Range
    Up to 10x
  • Pixels
    0.2 MP
  • Chrome
    Monochrome
  • Lens Mount
    F-Mount, M90 x 1 mm
  • Power Supply
    12 to 24 VDC
  • Power Consumption
    8 to 12 W (Dissipation)
  • RoHs
    Yes

Physical Properties

  • Dimension
    97 (W) x 97 (H) x 61 (D) mm
  • Weight
    685 g

Temperature

  • Operating Temperature
    0 to 60 Degree C
