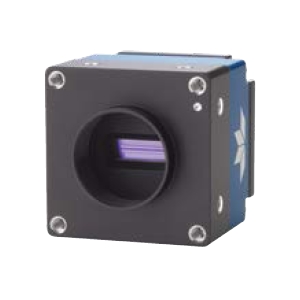

SL-GA-05H04A

Scientific & Industrial Camera by Teledyne DALSA Inc.
84 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne DALSA Inc..

The SL-GA-05H04A from Teledyne DALSA Inc. is a Scientific & Industrial Camera with Mega Pixels 0.0005 MP, Wavelength Range 950 to 1700 nm, Bit Depth 8 Bit, 12 Bit, Line Rate 40 kHz. More details for SL-GA-05H04A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SL-GA-05H04A
  • Manufacturer
    Teledyne DALSA Inc.
  • Description
    INGAAS GIGE Line Scan Camera

Applications

  • Application
    Food Sorting, Industrial Sorting, Recycling, Solar Panel Inspection, Silicon Wafer Inspection, General Purpose Machine Vision
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), Power over Ethernet (PoE)

General Parameters

  • Camera Type
    Line Scan Cameras
  • Mega Pixels
    0.0005 MP
  • Resolution
    512(H) x 1(V)
  • Sensor Type
    SWIR InGaAs, CMOS
  • Wavelength Range
    950 to 1700 nm
  • Pixel Size(H x V)
    25 µm
  • Full Well Capacity :
    135 to 10000 ke-
  • Spectral Range
    950 to 1700 nm
  • Dynamic Range
    48 to 66 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Dark Current
    <5 pA
  • Color / Bit Depth
    8 Bit, 12 Bit
  • Line Rate
    40 kHz
  • Line Rate
    40 kHz
  • Detector Type
    InGaAs
  • Detector Sensitivity
    20 to 1600 DN12/nJ/cm2
  • Read Noise
    2.8 to 21 DN12 (Dark Noise)
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Short-Wave IR
  • Cooling Method
    Uncooled
  • I/O Signals
    GPIO IN, OUT
  • Pixels
    0.0005 MP
  • Chrome
    Monochrome
  • Lens Mount
    C-Mount

Physical Properties

  • Dimension
    46 mm x 46 mm x 55 mm
  • Weight
    150 g
