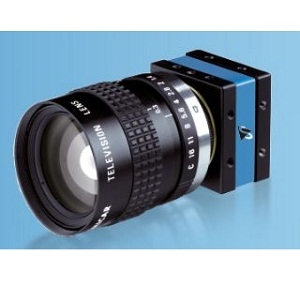

DFK 27AUJ003

Scientific & Industrial Camera by The Imaging Source Europe GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to The Imaging Source Europe GmbH.

The DFK 27AUJ003 from The Imaging Source Europe GmbH is a Scientific & Industrial Camera with Mega Pixels 10.7 MP, Frame Rate 7 fps, Bit Depth 8 Bit, 12 Bit. More details for DFK 27AUJ003 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DFK 27AUJ003
  • Manufacturer
    The Imaging Source Europe GmbH
  • Description
    USB 3.0 color industrial camera

Applications

  • Application
    Industrial Automation, Quality Assurance, Security, Surveillance and Medical
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    10.7 MP
  • Resolution
    3856(H) x 2764(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    7 fps
  • Pixel Size(H x V)
    1.67 x 1.67 µm(H x V)
  • Sensor Format
    1/2.3 Inches
  • Bit Depth
    8 Bit, 12 Bit
  • Sensor Configurations
    Color
  • Gain Range
    0 to 12 dB
  • Pixels
    10.7 MP
  • ADC Resolution
    8, 12 bit
  • Chrome
    Color
  • Lens Mount
    CS- Mount
  • Power Supply
    4.5 to 5.5 VDC
  • Sensor Model Number
    MT9J003

Physical Properties

  • Dimension
    36 x 36 x 29 mm
  • Weight
    70 g

Temperature

  • Operating Temperature
    -5 to 45 Degree C
  • Storage Temperature
    -20 to 60 Degree C
