DFM 31AF03-ML

Scientific & Industrial Camera by The Imaging Source Europe GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to The Imaging Source Europe GmbH.

The DFM 31AF03-ML from The Imaging Source Europe GmbH is a Scientific & Industrial Camera with Mega Pixels 0.8 MP, Frame Rate 30 fps, Bit Depth 8 Bit. More details for DFM 31AF03-ML can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DFM 31AF03-ML
  • Manufacturer
    The Imaging Source Europe GmbH

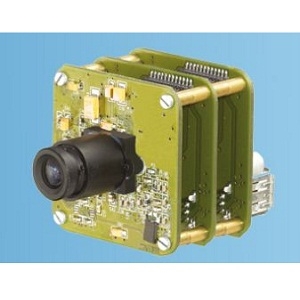

  • Description
    FireWire 400 color board camera

Applications

  • Application
    Industrial Automation, Quality Assurance, Security, Surveillance and Medical
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    FireWire

General Parameters

  • Camera Type
    Area Scan Cameras, Board Cameras
  • Mega Pixels
    0.8 MP
  • Resolution
    1024(H) x 768(V)
  • Sensor Type
    CCD
  • Shutter Type
    Global Shutter
  • Frame Rate
    30 fps
  • Pixel Size(H x V)
    4.65 x 4.65 µm(H x V)
  • Sensor Format
    1/3 Inches
  • Bit Depth
    8 Bit
  • Detector Sensitivity
    0.15 Lux
  • Sensor Configurations
    Color
  • Gain Range
    0 to 36 dB
  • Pixels
    0.8 MP
  • ADC Resolution
    8 bit
  • Chrome
    Color
  • Lens Mount
    M12 x 0.5 (S-Mount)
  • Power Supply
    8 to 30 VDC
  • Sensor Model Number
    ICX204AK)

Physical Properties

  • Dimension
    50 x 50 x 56 mm
  • Weight
    165 g

Temperature

  • Operating Temperature
    -5 to 55 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
