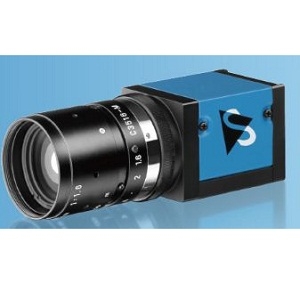

DMK 23UX249

Scientific & Industrial Camera by The Imaging Source Europe GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to The Imaging Source Europe GmbH.

The DMK 23UX249 from The Imaging Source Europe GmbH is a Scientific & Industrial Camera with Mega Pixels 2.3 MP, Frame Rate 30 fps, Bit Depth 8 Bit, 12 Bit. More details for DMK 23UX249 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DMK 23UX249
  • Manufacturer
    The Imaging Source Europe GmbH
  • Description
    USB 3.0 monochrome industrial camera

Applications

  • Application
    Industrial Automation, Quality Assurance, Security, Surveillance and Medical
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2.3 MP
  • Resolution
    1920(H) x 1200(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    30 fps
  • Pixel Size(H x V)
    5.86 x 5.86 µm(H x V)
  • Sensor Format
    1/1.2 Inches
  • Bit Depth
    8 Bit, 12 Bit
  • Detector Sensitivity
    0.05 Lux
  • Sensor Configurations
    Monochrome
  • Gain Range
    0 to 36 dB
  • Pixels
    2.3 MP
  • ADC Resolution
    8, 12 bit
  • Chrome
    Monochrome
  • Lens Mount
    CS- Mount
  • Power Supply
    4.5 to 5.5 VDC
  • Sensor Model Number
    IMX236LL

Physical Properties

  • Dimension
    29 x 29 x 43 mm
  • Weight
    65 g

Temperature

  • Operating Temperature
    -5 to 45 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Technical Documents
