DMM 24UP031-ML

Scientific & Industrial Camera by The Imaging Source Europe GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to The Imaging Source Europe GmbH.

The DMM 24UP031-ML from The Imaging Source Europe GmbH is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 15 fps, Bit Depth 8 Bit, 12 Bit. More details for DMM 24UP031-ML can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DMM 24UP031-ML
  • Manufacturer
    The Imaging Source Europe GmbH
  • Description

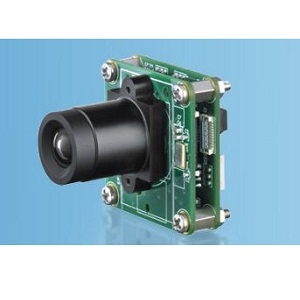

    USB 3.0 monochrome board camera

Applications

  • Application
    Industrial Automation, Quality Assurance, Security, Surveillance and Medical
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Area Scan Cameras, Board Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2592(H) x 1944(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    15 fps
  • Pixel Size(H x V)
    2.2 x 2.2 µm(H x V)
  • Sensor Format
    1/2.5 Inches
  • Bit Depth
    8 Bit, 12 Bit
  • Sensor Configurations
    Monochrome
  • Gain Range
    0 to 12 dB
  • Pixels
    5 MP
  • ADC Resolution
    8, 12 bit
  • Chrome
    Monochrome
  • Lens Mount
    CS- Mount
  • Power Supply
    4.5 to 5.5 VDC
  • Sensor Model Number
    MT9P031

Physical Properties

  • Dimension
    30 x 30 x 18 mm
  • Weight
    15 g

Temperature

  • Operating Temperature
    -5 to 55 Degree C
  • Storage Temperature
    -20 to 60 Degree C
