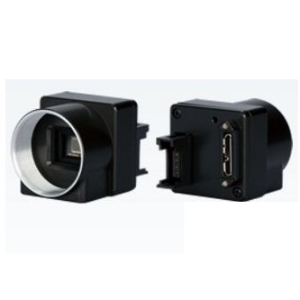

BU132M

Scientific & Industrial Camera by Toshiba Corporation
20 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Toshiba Corporation.

The BU132M from Toshiba Corporation is a Scientific & Industrial Camera with Mega Pixels 1.3 MP, Frame Rate 60 fps, Bit Depth 8 Bit, 10 Bit (Mono). More details for BU132M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BU132M
  • Manufacturer
    Toshiba Corporation

Connections & Interface

  • Data Interface
    USB

General Parameters

  • Camera Type
    Interline-Transfer Cameras
  • Mega Pixels
    1.3 MP
  • Resolution
    1280(H) x 1024(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    60 fps
  • Pixel Size(H x V)
    5.3 x 5.3 µm²(H x V)
  • Active Image Area
    6.78 x 5.43 mm
  • Sensor Format
    1/1.8 Inches
  • Bit Depth
    8 Bit, 10 Bit (Mono)
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    8 Bit, 10 Bit (Mono)
  • Detector Sensitivity
    500 lx
  • Sensor Configurations
    Monochrome, B/W
  • Detection Wavelength Range
    Visible
  • Gain Range
    0 to 18 dB
  • Pixels
    1.3 MP
  • Chrome
    Monochrome, B/W
  • Lens Mount
    C-Mount
  • Power Supply
    DC to 5V
  • Power Consumption
    1.7 W
  • Sensor Manufacturer
    Teledyne e2V
  • Sensor Model Number
    EV76C560
  • Note
    Aspect ratio: 5:4, (Gamma)?=1.0 to 0.45

Physical Properties

  • Dimension
    29 x 29 x 16 mm
  • Weight
    33 g
