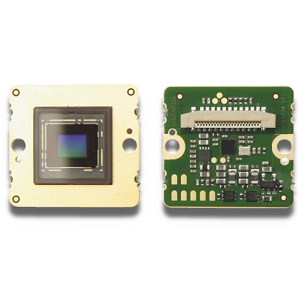

VC MIPI IMX250

Scientific & Industrial Camera by Vision Components
Request Quote

Note: Your Quotation Request will be directed to Vision Components.

The VC MIPI IMX250 from Vision Components is a Scientific & Industrial Camera with Mega Pixels 5.01 MP, Frame Rate 69.5 to 101.3 fps, Bit Depth 8 Bit, 10 Bit, 12 Bit. More details for VC MIPI IMX250 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VC MIPI IMX250
  • Manufacturer
    Vision Components
  • Description
    5.01 MP Serial Communication Monochrome Analog Cameras, Digital Cameras

Connections & Interface

  • Data Interface
    Serial Communication

General Parameters

  • Camera Type
    Analog Cameras, Digital Cameras
  • Mega Pixels
    5.01 MP
  • Resolution
    2448(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    69.5 to 101.3 fps
  • Pixel Size(H x V)
    3.45(H) x 3.45(V) µm
  • Active Image Area
    8.446(H) x 7.066(V) mm
  • Sensor Format
    2/3 Inches
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Sensor Configurations
    Monochrome
  • Detection Wavelength Range
    Visible
  • Gain Range
    0 to 24 dB
  • Pixel Binning
    2 x 2
  • Pixels
    5.01 MP
  • ADC Resolution
    8 Bit, 10 Bit, 12 Bit
  • Chrome
    Monochrome
  • Voltage(DC)
    3.3 V
  • Sensor Manufacturer
    Sony Corporation
  • Sensor Model Number
    Sony IMX250
  • Note
    Order number: VK000481, Standby current: 65 mA, Current Consumption: 450 mA

Physical Properties

  • Weight
    7.5 g

Temperature

  • Operating Temperature
    -30 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
