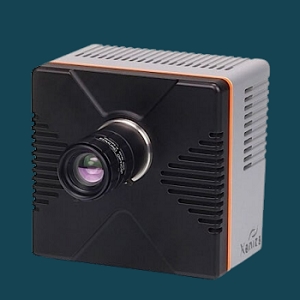

XEN-000045

Scientific & Industrial Camera by Xenics
194 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Xenics.

The XEN-000045 from Xenics is a Scientific & Industrial Camera with Mega Pixels 0.33 MP, Frame Rate 111 to 1730 Hz, Wavelength Range 500 to 1700 nm (vSWIR), 900 to 1700 nm (SWIR), Bit Depth 14 Bit. More details for XEN-000045 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XEN-000045
  • Manufacturer
    Xenics
  • Description
    500 to 1700 nm VIS-NIR, SWIR InGaAs Area Scan Cameras

Applications

  • Application
    Scientific instrumentation, Agriculture observation, Medical imaging, Space exploration, Firefighting, Cell analysis, Machine vision, Material analysis, Beam profile analysis
  • Application Industry
    Industrial Inspection and Automation, Scientific and Research, Medical and Healthcare, Outdoor and Environmental Monitoring

Connections & Interface

  • Data Interface
    CameraLink

General Parameters

  • Camera Type
    Area Scan Cameras, SWIR Cameras
  • Mega Pixels
    0.33 MP
  • Resolution
    640(H) x 512(V)
  • Sensor Type
    SWIR InGaAs
  • Shutter Type
    Global Shutter
  • Frame Rate
    111 to 1730 Hz
  • Wavelength Range
    500 to 1700 nm (vSWIR), 900 to 1700 nm (SWIR)
  • Pixel Size(H x V)
    20 µm x 20 µm
  • Spectral Range
    500 to 1700 nm (vSWIR), 900 to 1700 nm (SWIR)
  • Bit Depth
    14 Bit
  • Detector Type
    Photodiode
  • Sensor Configurations
    Near Infrared
  • Detection Wavelength Range
    Visible, Short-Wave IR
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Pixels
    0.33 MP, VGA
  • ADC Resolution
    14 Bit
  • Chrome
    Visible, Near-Infrared, SWIR
  • Lens Mount
    C-Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    Up to 60 W
  • Note
    Connector: SMA

Physical Properties

  • Dimension
    143 x 137 x 95 mm (W x H x L)
  • Weight
    2000 g
