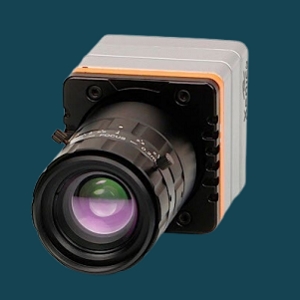

XEN-000434

Scientific & Industrial Camera by Xenics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Xenics.

The XEN-000434 from Xenics is a Scientific & Industrial Camera with Mega Pixels 0.002 MP, Wavelength Range 900 to 1700 nm, Bit Depth 14 Bit, Line Rate 10 kHz. More details for XEN-000434 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XEN-000434
  • Manufacturer
    Xenics
  • Description
    900 to 1700 nm SWIR InGaAs Line Scan Cameras

Applications

  • Application
    Spectroscopy
  • Application Industry
    Scientific and Research

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)
  • Peripheral Communications
    RJ-45

General Parameters

  • Camera Type
    Line Scan Cameras, SWIR Cameras
  • Mega Pixels
    0.002 MP
  • Resolution
    1(H) x 2048(V)
  • Sensor Type
    SWIR InGaAs
  • Shutter Type
    Global Shutter
  • Wavelength Range
    900 to 1700 nm
  • Pixel Size(H x V)
    12.5 µm x 12.5 µm
  • Active Image Area
    6.4 x 5.12 mm2
  • Full Well Capacity :
    450 ke- to 32 Me-
  • Spectral Range
    900 to 1700 nm
  • Bit Depth
    14 Bit
  • Line Rate
    10 kHz
  • Line Rate
    10 kHz
  • Operability
    >99%
  • Detector Type
    Photodiode
  • Detection Wavelength Range
    Short-Wave IR
  • Cooling Method
    Uncooled
  • Pixels
    0.002 MP
  • ADC Resolution
    14 Bit
  • Chrome
    SWIR
  • Lens Mount
    C-Mount, M42 Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    6.3 W
  • Optical Diagonal
    8.2 mm
  • RoHs
    Yes
  • Note
    Connector: SMA

Physical Properties

  • Dimension
    49 x 49 x 71 mm (W x H x L)
  • Weight
    208 g

Temperature

  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -55 to 85 Degree C
