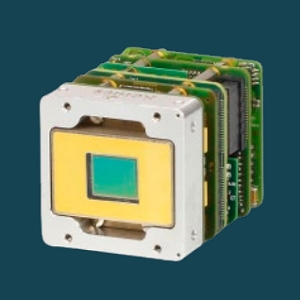

XEN-000596

Scientific & Industrial Camera by Xenics
194 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Xenics.

The XEN-000596 from Xenics is a Scientific & Industrial Camera with Mega Pixels 0.08 MP, Frame Rate 400 Hz, Wavelength Range 900 to 1700 nm, Bit Depth 14 Bit. More details for XEN-000596 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XEN-000596
  • Manufacturer
    Xenics
  • Description
    900 to 1700 nm SWIR InGaAs Area Scan, SWIR Scientific Cameras

Applications

  • Application
    image processing, industrial and security, machine vision, safety & security
  • Application Industry
    Consumer Electronics, Security and Surveillance, Industrial Inspection and Automation, Outdoor and Environmental Monitoring

General Parameters

  • Camera Type
    Area Scan Cameras, SWIR Cameras
  • Mega Pixels
    0.08 MP
  • Resolution
    320(H) x 256(V)
  • Sensor Type
    SWIR InGaAs
  • Shutter Type
    Global Shutter
  • Frame Rate
    400 Hz
  • Wavelength Range
    900 to 1700 nm
  • Pixel Size(H x V)
    20 µm x 20 µm
  • Active Image Area
    6.4 x 5.12 mm2
  • Full Well Capacity :
    70 ke-
  • Exposure Time :
    0.0001 to 40 ms
  • Spectral Range
    900 to 1700 nm
  • Bit Depth
    14 Bit
  • Dark Current
    <100 ke-/s
  • Operability
    >99%
  • Detector Type
    Photodiode
  • Read Noise
    110 e-
  • Detection Wavelength Range
    Short-Wave IR
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Pixels
    0.08 MP
  • ADC Resolution
    14 Bit
  • Chrome
    SWIR
  • Lens Mount
    C-Mount, M42 Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    2.5 W
  • Optical Diagonal
    8.2 mm
  • RoHs
    Yes

Physical Properties

  • Dimension
    45 x 45 x 52 mm (W x H x L)
  • Weight
    122 g

Temperature

  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -45 to 85 Degree C
