XEN-000655

Scientific & Industrial Camera by Xenics
194 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Xenics.

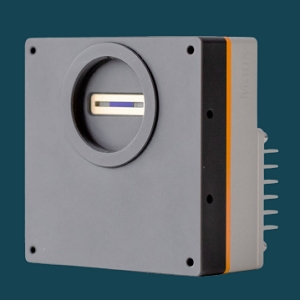

The XEN-000655 from Xenics is a Scientific & Industrial Camera with Mega Pixels 0.001 MP, Wavelength Range 900 to 1700 nm, Bit Depth 14 Bit, Line Rate 128 to 256 kHz. More details for XEN-000655 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XEN-000655
  • Manufacturer
    Xenics
  • Description
    900 to 1700 nm SWIR InGaAs Line Scan, Board Cameras

Applications

  • Application
    Scientific instrumentation, Medical imaging, Firefighting, Waste management, Cell analysis, Machine vision, Material analysis
  • Application Industry
    Medical and Healthcare, Outdoor and Environmental Monitoring, Industrial Inspection and Automation, Scientific and Research

Connections & Interface

  • Data Interface
    CoaXPress

General Parameters

  • Camera Type
    Line Scan Cameras, SWIR Cameras
  • Mega Pixels
    0.001 MP
  • Resolution
    1(H) x 1024(V)
  • Sensor Type
    SWIR InGaAs
  • Shutter Type
    Global Shutter
  • Wavelength Range
    900 to 1700 nm
  • Pixel Size(H x V)
    12.5 µm x 12.5 µm
  • Full Well Capacity :
    290 ke- to 35 Me-
  • Spectral Range
    900 to 1700 nm
  • Bit Depth
    14 Bit
  • Dark Current
    0.2 Me-/s
  • Line Rate
    128 to 256 kHz
  • Line Rate
    128 to 256 kHz
  • Operability
    >99.6%
  • Detector Type
    Photodiode
  • Read Noise
    350 to 12000 e-
  • Detection Wavelength Range
    Short-Wave IR
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Pixels
    0.001 MP
  • ADC Resolution
    14 Bit
  • Chrome
    SWIR
  • Lens Mount
    C-Mount, M42 Mount
  • Voltage(DC)
    24 V
  • Power Consumption
    Up to 11 W
  • RoHs
    Yes

Physical Properties

  • Dimension
    102 x 102 x 40 mm (W x H x L)
  • Weight
    900 g

Temperature

  • Operating Temperature
    -40 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
