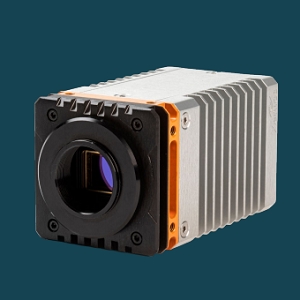

XEN-000680

Scientific & Industrial Camera by Xenics
194 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Xenics.

The XEN-000680 from Xenics is a Scientific & Industrial Camera with Mega Pixels 0.33 MP, Frame Rate 220 Hz to 1 kHz, Wavelength Range 900 to 1700 nm, Bit Depth 16 Bit (Output format). More details for XEN-000680 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XEN-000680
  • Manufacturer
    Xenics
  • Description
    900 to 1700 nm SWIR InGaAs SWIR Scientific, Hyperspectral Cameras

Applications

  • Application
    Monitoring, Industrial, Machine Vision, Medical
  • Application Industry
    Security and Surveillance, Industrial Inspection and Automation, Medical and Healthcare

Connections & Interface

  • Data Interface
    Camera Link

General Parameters

  • Camera Type
    SWIR Cameras, Hyperspectral Cameras
  • Mega Pixels
    0.33 MP
  • Resolution
    640(H) x 512(V)
  • Sensor Type
    SWIR InGaAs
  • Shutter Type
    Global Shutter
  • Frame Rate
    220 Hz to 1 kHz
  • Wavelength Range
    900 to 1700 nm
  • Pixel Size(H x V)
    20 µm x 20 µm
  • Active Image Area
    12.8 x 10.24 mm2
  • Full Well Capacity :
    110 ke- (HG), 600 ke- (HDR)
  • Exposure Time :
    0.5 to 5 ms
  • Spectral Range
    900 to 1700 nm
  • Bit Depth
    16 Bit (Output format)
  • Dark Current
    <100 ke-/s
  • Operability
    >99%
  • Detector Type
    Photodiode
  • Read Noise
    80 e- (HG), 250 e- (HDR)
  • Detection Wavelength Range
    Short-Wave IR
  • Cooling Method
    Thermoelectric Cooling (TEC)
  • Pixels
    0.33 MP, VGA
  • Chrome
    SWIR
  • Lens Mount
    C-Mount, M42 Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    <6 W
  • Optical Diagonal
    16.4 mm

Physical Properties

  • Dimension
    55 x 55 x 72 mm (W x H x L)
  • Weight
    316 g

Temperature

  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
