XEN-000725

Scientific & Industrial Camera by Xenics
194 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Xenics.

The XEN-000725 from Xenics is a Scientific & Industrial Camera with Mega Pixels 0.31 MP, Frame Rate 60 Hz, Wavelength Range 8 to 14 µm, Bit Depth 16 Bit. More details for XEN-000725 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XEN-000725
  • Manufacturer
    Xenics
  • Description

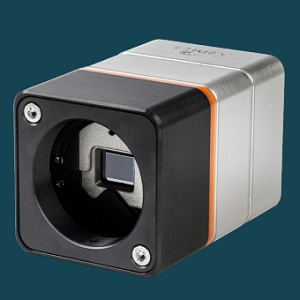

    8 to 14 µm Infrared Microbolometer Thermal Cameras

Applications

  • Application
    Search and Rescue, Traffic management, Borders & infrastructures surveillance, Maritime surveillance, Firefighting, Gas detection, Machine vision, Powergrid maintenance, Beam profile analysis
  • Application Industry
    Security and Surveillance, Traffic Management and Intelligent Transportation Systems (ITS), Outdoor and Environmental Monitoring, Scientific and Research, Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE), GenICam
  • Peripheral Communications
    RJ-45

General Parameters

  • Camera Type
    Thermal Cameras
  • Mega Pixels
    0.31 MP
  • Resolution
    640(H) x 480(V)
  • Sensor Type
    Microbolometer
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 Hz
  • Wavelength Range
    8 to 14 µm
  • Pixel Size(H x V)
    12 µm x 12 µm
  • Active Image Area
    7.68 x 5.76 mm2
  • Spectral Range
    8 to 14 µm
  • Bit Depth
    16 Bit
  • Operability
    >99.5%
  • Sensor Configurations
    Infrared
  • Detection Wavelength Range
    Long-Wave IR
  • Cooling Method
    Uncooled
  • Pixels
    0.31 MP
  • Camera(f-Number)
    F/1
  • ADC Resolution
    16 Bit
  • Chrome
    Infrared
  • Integration Time
    20 to 65 µs
  • Lens Mount
    M24 Mount, M34 Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    4 W
  • Optical Diagonal
    9.6 mm
  • RoHs
    Yes

Physical Properties

  • Dimension
    45 x 45 x 75 mm (W x H x L)
  • Weight
    207 g

Temperature

  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
