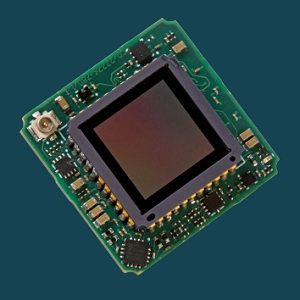

XEN-000791

Scientific & Industrial Camera by Xenics
194 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Xenics.

The XEN-000791 from Xenics is a Scientific & Industrial Camera with Mega Pixels 0.08 MP, Frame Rate 60 Hz, Wavelength Range 8 to 14 µm, Bit Depth 14 Bit. More details for XEN-000791 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XEN-000791
  • Manufacturer
    Xenics
  • Description
    8 to 14 µm Infrared Microbolometer Thermal, Area Scan Cameras

Applications

  • Application
    Machine Vision, Medical, Scientific, Research, Safety, Security
  • Application Industry
    Industrial Inspection and Automation, Scientific and Research, Security and Surveillance, Outdoor and Environmental Monitoring

Connections & Interface

  • Data Interface
    GenICam, MIPI CSI-2

General Parameters

  • Camera Type
    Thermal Cameras, Area Scan Cameras
  • Mega Pixels
    0.08 MP
  • Resolution
    320(H) x 240(V)
  • Sensor Type
    Microbolometer
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 Hz
  • Wavelength Range
    8 to 14 µm
  • Pixel Size(H x V)
    12 µm x 12 µm
  • Active Image Area
    3.84 x 2.88 mm2
  • Spectral Range
    8 to 14 µm
  • Bit Depth
    14 Bit
  • Operability
    >99.8%
  • Sensor Configurations
    Infrared
  • Detection Wavelength Range
    Long-Wave IR
  • Cooling Method
    Uncooled
  • Pixels
    0.08 MP
  • Camera(f-Number)
    F/1
  • ADC Resolution
    14 Bit
  • Chrome
    Infrared
  • Integration Time
    20 to 65 µs
  • Voltage(DC)
    5 V
  • Power Consumption
    570 mW
  • Optical Diagonal
    4.8 mm
  • RoHs
    Yes

Physical Properties

  • Dimension
    25 x 25 x 10 mm (W x H x L)
  • Weight
    6 g

Temperature

  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -45 to 85 Degree C

Technical Documents
Click to view more product details on manufacturer's website
