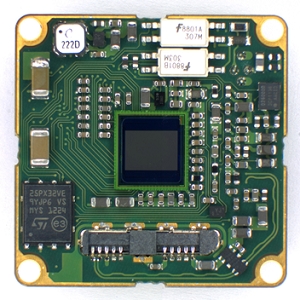

MQ003MG-CM-BRD

Scientific & Industrial Camera by XIMEA GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to XIMEA GmbH.

The MQ003MG-CM-BRD from XIMEA GmbH is a Scientific & Industrial Camera with Mega Pixels 0.31 MP, Frame Rate 500 fps, Wavelength Range 400 to 1000 nm, Bit Depth 8 Bit, 10 Bit, 12 Bit. More details for MQ003MG-CM-BRD can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MQ003MG-CM-BRD
  • Manufacturer
    XIMEA GmbH

Applications

  • Application
    In-situ Optical Inspection Camera, Fast Process Capturing, E.g. Golf Club Swings, Intelligent Transportation Systems (its), Open Road Tolling And Traffic Monitoring, Industrial Automation, Machine Vision Facial Recognition, Motion Capture, Automotive Crash Testing, OCR/ OCV, 3D Scanning, Robotic Arms, Material And Life Science Microscopy, Ophthalmology And Retinal Imaging, Medical Imaging, Flat Panel Inspection, Dental, Kiosks, Security, Biometrics
  • Application Industry
    Medical and Healthcare, Outdoor and Environmental Monitoring, Industrial Inspection and Automation, Consumer Electronics, Scientific and Research, Traffic Management and Intelligent Transportation Systems (ITS)

Connections & Interface

  • Data Interface
    USB
  • Peripheral Communications
    Hirose SR38-4R-3S(71)

General Parameters

  • Camera Type
    Area Scan Cameras, Board Cameras
  • Mega Pixels
    0.31 MP
  • Resolution
    648(H) x 488(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    500 fps
  • Wavelength Range
    400 to 1000 nm
  • Pixel Size(H x V)
    7.4 x 7.4 µm(H x V)
  • Active Image Area
    4.8 × 3.6 mm
  • Sensor Format
    1/3 Inches
  • Dynamic Range
    60 dB
  • Bit Depth
    8 Bit, 10 Bit, 12 Bit
  • Sensor Configurations
    Monochrome
  • Cooling Method
    Uncooled
  • Pixels
    VGA, 0.31 MP
  • ADC Resolution
    8 Bit, 10 Bit, 12 Bit
  • Chrome
    Monochrome
  • Power Consumption
    1.2 W
  • Optical Diagonal
    5.9 mm
  • Sensor Model Number
    CMV300

Physical Properties

  • Dimension
    26 x 26 mm
  • Weight
    3 grams

Temperature

  • Operating Temperature
    10 to 25 Degree C

Technical Documents
